(06-001[02]) - NAME PLATE INSTAL, P/N PW22T00105F1

Запчасти Case CX36B (06-001[02]) - NAME PLATE INSTAL, P/N PW22T00105F1 (90) - PLATFORM, CAB, BODYWORK AND DECALS

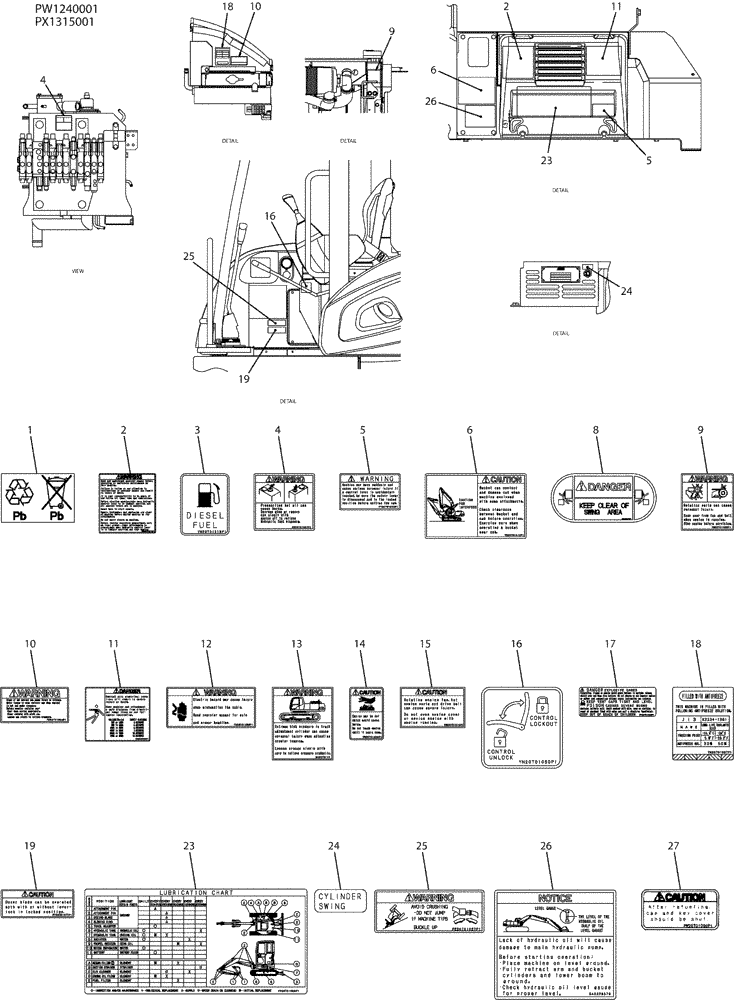

Схема запчастей Case CX36B - (06-001[02]) - NAME PLATE INSTAL, P/N PW22T00105F1 (90) - PLATFORM, CAB, BODYWORK AND DECALS
10
2
5
9
3
25
6
1
27
11
8
19
4
23
15
25
11
16
5
10
24
16
19
18
13
6
26
4
14
18
12
23
17
9
2
24
26
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2

YN20T01016P1

WARNING DECAL

Warning, Read Operator Manual

1шт.

4

PW20T01007P1

LABEL

Warning, Pressurize Hot Oil can cause burns

1шт.

5

PY20T01073P1

WARNING DECAL

Warning, Move Suddenly

1шт.

6

YN20T01013P1

LABEL

Caution, Interference

1шт.

9

YN20T01009P1

LABEL

Warning, Rotation Parts

1шт.

10

PW20T01094P1

WARNING DECAL

Warning, Coolant

1шт.

11

YN20T01006P1

LABEL

Danger, Power Lines

1шт.

16

YN20T01050P1

LABEL

Control, Lockout

1шт.

18

YN20T01097P1

LABEL

Antifreeze

1шт.

19

PY20T01077P1

LABEL

Caution, Dozer Blade can be operated both with or without lever lock in lock position

1шт.

23

PV20T01003P1

LABEL

Lubrication chart

1шт.

24

PW20T01044P1

LABEL

Cylinder Swing

1шт.

25

PE20T01027P1

LABEL

Warning, Avoid crusing - do not jump if machine tips, Buckle up.

1шт.

26

2432P3379

LABEL

Notice, Hydraulic Oil

1шт.
