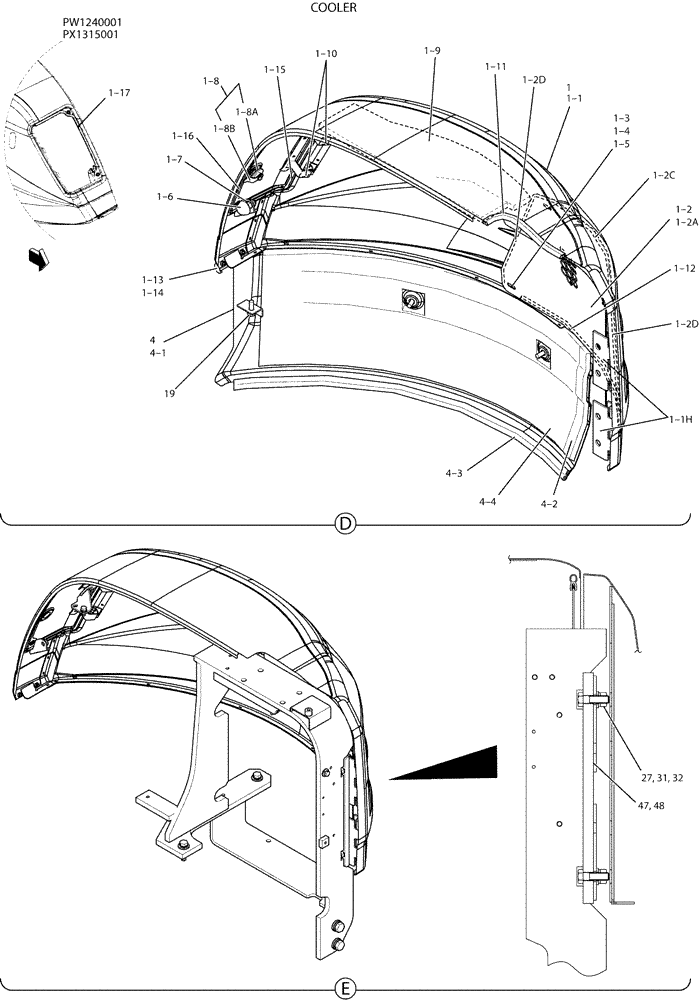

Запчасти Case CX36B (05-015[03]) - GUARD INSTAL (COOLER), P/N PW21000029F1 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

PW21C00027F1

COVER ASSY

COVER ASSY, SIDE

1шт.

1-1

PW21C01667P1

COVER

COVER

1шт.

1-1h

PW21C01635P1

HINGE

2шт.

1-2

PW21C01799F1

GUARD

GUARD ASSY; Mesh Screen

1шт.

1-2a

PW21C01784P1

GUARD

GUARD

1шт.

1-2c

PW21C01583D2

RUBBER

1шт.

1-2d

PW21C01583D3

RUBBER

2шт.

1-3

ZN18C06005

NUT

6шт.

1-4

ZW26X06000

LOCK WASHER

6шт.

1-5

YT21P01001P1

WASHER

6шт.

1-6

YN21C01321P1

STOP

STOPPER

1шт.

1-7

ZN17F10008

NUT

1шт.

1-8

PM21C01268F1

LOCK

1шт.

1-8a

YR22C01025P2

LOCK

1шт.

1-8b

PM21C01269P1

PLATE

1шт.

1-9

PW21C01636P1

FOAM INSULATION

1шт.

1-10

PW21C01682P1

RUBBER

2шт.

1-11

YW21C01057D1

WEATHERSTRIP

1шт.

1-12

PW21C01583D1

RUBBER

1шт.

1-13

PW21C01713P1

GUARD

1шт.

1-14

ZS41C05012

CAPSCREW,M5 x 12mm

2шт.

1-15

PW21C01742P3

RUBBER

1шт.

1-16

PW21C01740P3

RUBBER

1шт.

1-17

PE21C01135D8

SEAL

1шт.

4

PW21C01801F1

COVER ASSY

Incls. Refs. 4-1 - 4-4

1шт.

4-1

PW21C01802P1

COVER ASSY

R.H.

1шт.

4-2

PM21C01233P1

RUBBER

1шт.

4-3

2427P1836D32

WEATHERSTRIP

950mm Long (37-25/64 in)

1шт.

4-4

PW21C01629P1

FOAM INSULATION

1шт.

19

PA41C01005D3

BOLT

SEMS

1шт.

27

ZW26X12000

LOCK WASHER

2шт.

31

ZN18C12010

NUT

2шт.

32

ZW16H12000

WASHER

2шт.

41

PW21C01756D1

SHIM,1.2mm Thk

SHIM, 1.2

1шт.

42

PW21C01756D2

SHIM,2.3mm Thk

SHIM, 2.3

1шт.
