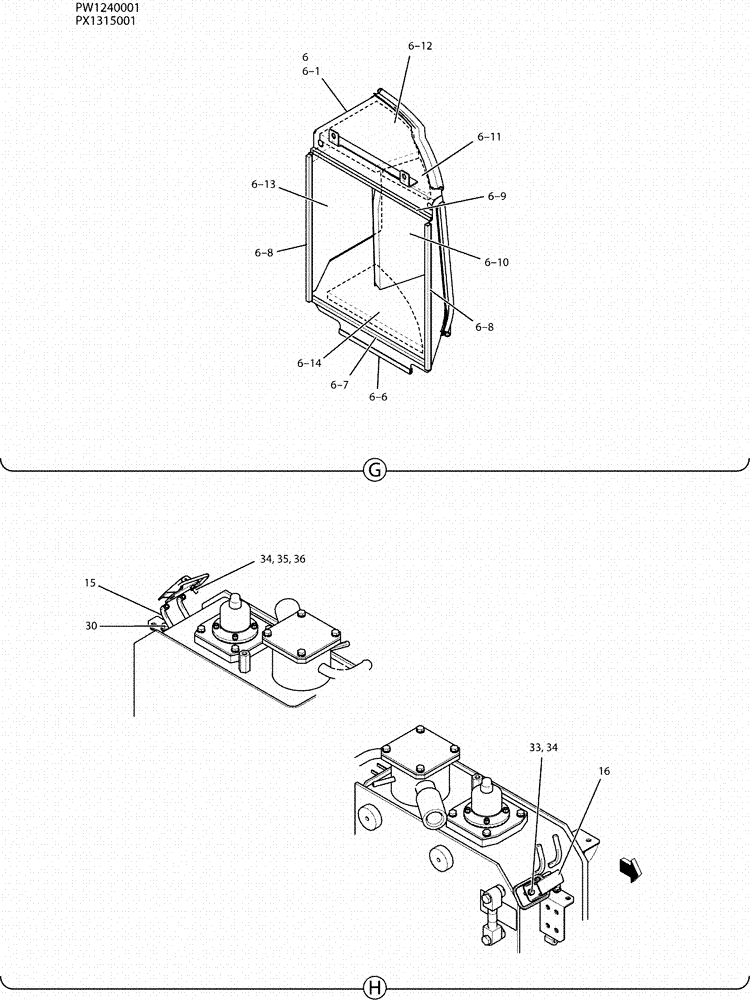

Запчасти Case CX36B (01-054[05]) - GUARD INSTAL (CANOPY) (90) - PLATFORM, CAB, BODYWORK AND DECALS

Guard Installation, PW21C00026F1, Page 5 of 5

1шт.

6

PW22C01151F1

DUCT

Assembly -- Incls. Refs. 6-1 - 6-14

1шт.

6-1

PW22C01149P1

DUCT

1шт.

6-6

YT21C01037D2

TRIM PANEL

235mm Long (9-1/4 in)

1шт.

6-7

PW22C01105D1

RUBBER

1шт.

6-8

PW22C01105D2

RUBBER

2шт.

6-9

PW22C01105D3

RUBBER

1шт.

6-10

PW22C01154P1

FOAM INSULATION

1шт.

6-11

PW22C01142P1

FOAM INSULATION

1шт.

6-12

PW22C01139P1

FOAM INSULATION

1шт.

6-13

PW22C01140P1

FOAM INSULATION

1шт.

6-14

PW22C01141P1

FOAM INSULATION

1шт.

15

PW21C01688P1

BRACKET

1шт.

16

PM21C01371P1

LOCK

1шт.

30

ZM22C08020

BOLT

M08x1.25x20mm (Incls. Washer & Lockwasher)

2шт.

33

ZS18C06020

SCREW,Hex, M6 x 20mm

M06x1.0x20mm

2шт.

34

ZW16H06000

WASHER

ID 06 x OD 15 x Th 3.2mm

4шт.

35

ZN18C06005

NUT

M06x1.0mm

2шт.

36

ZW26X06000

LOCK WASHER

ID 06 x OD 07 x Th 1.5mm

2шт.
