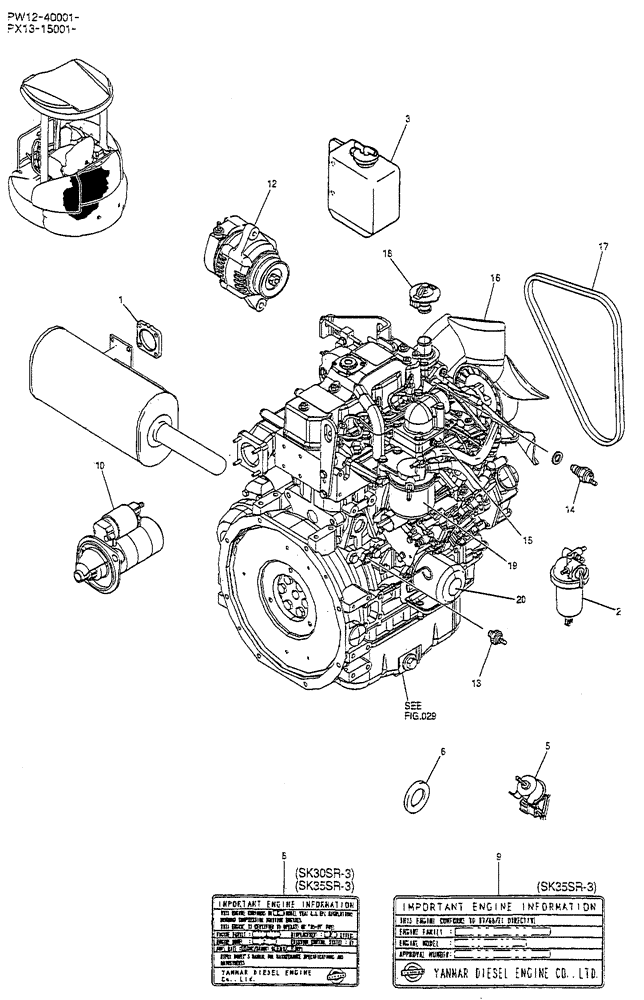

Запчасти Case CX36B (01-005) - ENGINE ASSY (10) - ENGINE

ar

PW02P00015F1

ENGINE

ENGINE ASSY

1шт.

1

PW12P01043P1

GASKET

1шт.

2

PW02P01046P1

SEPARATOR

1шт.

3

PU01P01024F1

RESERVOIR

1шт.

5

PW22P00001P1

FUEL PUMP

1шт.

6

PA13E01027P1

PACKING

1шт.

8

PY20T01087P1

LABEL

1шт.

9

PX20T01008P1

DECAL

LABEL

1шт.

NSS

NOT SOLD SEPARAT

YANMAR DIESEL PARTS NO.

1шт.

1

VV12900413200

GASKET

GASKET

1шт.

2

VV11980255700

SEPARATOR

SEPARATOR ASSY, WATER

1шт.

3

VV12146844510

TANK

TANK ASSY, WATER, SUB

1шт.

4

VV11980277200

RELAY

RELAY

1шт.

5

VV12961252100

FUEL PUMP,12V, 1.5A

PUMP, FUEL

1шт.

6

VV12915049360

PACKING

1шт.

7

VV12921177920

TIMER

TIMER

1шт.

10

VV12924277010

STARTER MOTOR

STARTER ASSY

1шт.

12

VV11962677210

ALTERNATOR,12V, 55 Amp

DYNAMO

1шт.

13

VV11425039450

PRESSURE SWITCH,DC6V, 12V, 24V, 49 +/- 1 kPa (7.1 +/- 1.4 psi), PT 1/8"

PRESS, OIL

1шт.

14

VV12125044901

THERMOSTATIC SWITCH,On - 110 Degrees C, 230 Degrees F

THERMO

1шт.

15

VV12910077500

HEATER

AIR HEATER

1шт.

16

VV17134044740

FAN

FAN

1шт.

17

VV12961242330

V-BELT

V-BELT

1шт.

18

VV12915549801

THERMOSTAT

THERMOSTAT

1шт.

19

VV11980255800

FUEL FILTER

FILTER, FUEL

1шт.

20

VV12915035152

ENGINE OIL FILTER

FILTER, OIL

1шт.
