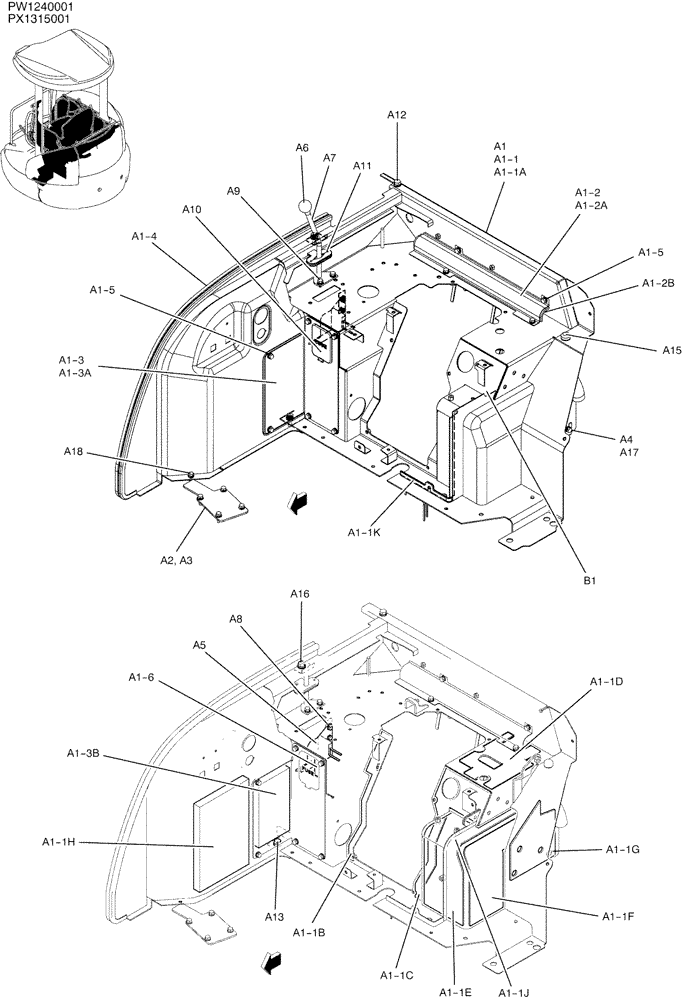

Запчасти Case CX36B (01-029) - STAND ASSY, CONTROL (CAB) (90) - PLATFORM, CAB, BODYWORK AND DECALS

NSS

NOT SOLD SEPARAT

STAND ASSY, CONTROL

1шт.

PW03M00106F1

CONTROLS, OPERATORS

1шт.

a1

PW10M00013F1

STAND ASSY, CONTROL

1шт.

a1-1

PW10M01269F1

STAND ASSY

1шт.

a1-1a

PW10M01268P1

STAND

STAND

1шт.

a1-1b

PW10M01202P1

FOAM INSULATION

1шт.

a1-1c

PW10M01103P1

FOAM INSULATION

1шт.

a1-1d

PW10M01224P1

FOAM INSULATION

1шт.

a1-1e

PW10M01180P1

FOAM INSULATION

1шт.

a1-1f

PH10M01045P1

FOAM INSULATION

1шт.

a1-1g

PW10M01207P1

FOAM INSULATION

1шт.

a1-1h

PW10M01203P1

FOAM INSULATION

1шт.

a1-1j

PW10M01181P1

FOAM INSULATION

1шт.

a1-1k

PW10M01279P1

RUBBER

RUBBER

1шт.

a1-2

PH03M01468F1

COVER ASSY

COVER ASSY

1шт.

a1-2a

PH03M01467P1

COVER

COVER

1шт.

a1-2b

PH03M01472P1

RUBBER

1шт.

a1-3

PW03M01586F1

COVER ASSY

COVER ASSY

1шт.

a1-3a

PH03M01432P2

COVER

COVER

1шт.

a1-3b

PW10M01177P1

FOAM INSULATION

1шт.

a1-4

PM21C01573D1

WEATHERSEAL STRIP

1шт.

a1-5

PA03M01093D2

BOLT

SEMS

10шт.

a1-6

PM22C01020DR

TRIM PANEL

1шт.

a2

PM55M01023P1

PLATE

1шт.

a3

ZM22C08025

BOLT

SEMS

4шт.

a4

PW03M01652P1

COVER

COVER

1шт.

a5

PH03M01435P1

COVER

1шт.

a6

PV03M01043P1

HANDLE GRIP

1шт.

a7

PW03M01624P1

LEVER

1шт.

a8

ZM61C06012

BOLT

SEMS

2шт.

a9

ZM22C08016

BOLT

SEMS

2шт.

a10

PW03M01543P1

GROMMET

1шт.

a11

PW03M01546P2

GROMMET

1шт.

a12

PM06C01045D3

BOLT

SEMS

1шт.

a13

ZM22C10030

BOLT

SEMS

1шт.

a15

PW03M01557P1

CAP

1шт.

a16

ZM22C10025

BOLT

SEMS

1шт.

a17

PA03M01093D2

BOLT

SEMS

2шт.

a18

ZM22C08020

BOLT

SEMS

1шт.

PW03M01716F1

GROMMET

ASSY

1шт.

b1

PW03M01712P1

GROMMET

1шт.
