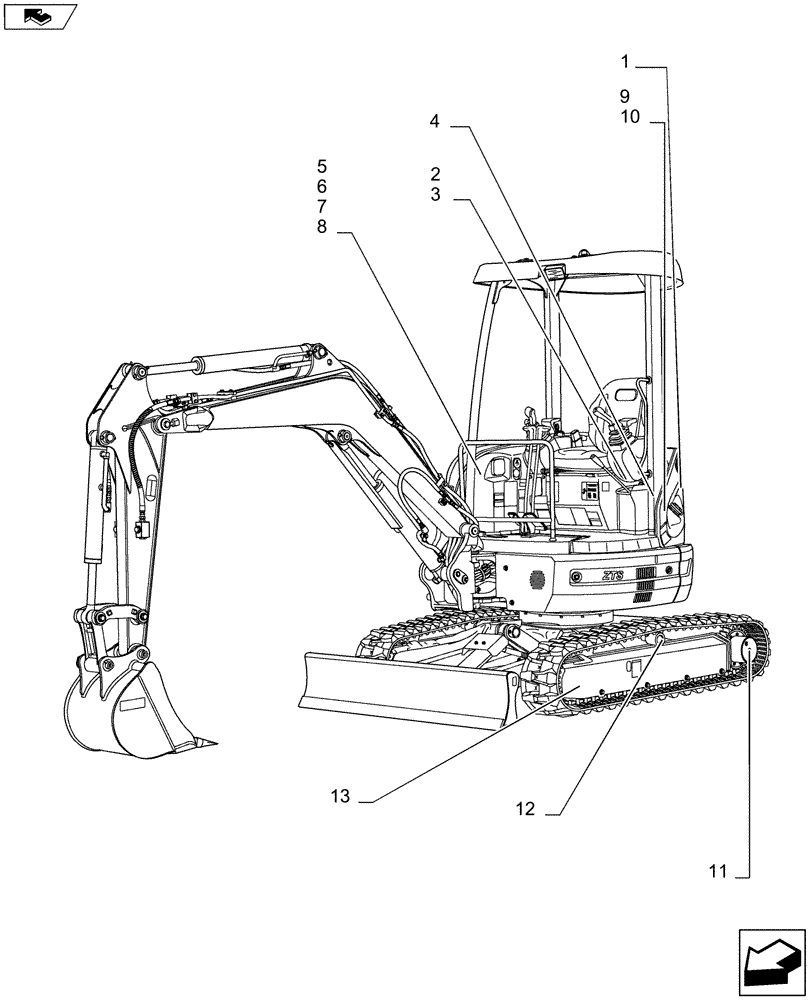

Запчасти Case CX36B (05.100.03[00]) - FILTERS & CAPACITIES, CX 36 B (05) - SERVICE & MAINTENANCE

1

Cooling System Capacity, 4.6 Liters (1.22 gal) Ethylene-glycol Coolant Solution

1шт.

.

Radiator, 1.6 Liters (0.42 gal)

1шт.

2

VV12915035152

ENGINE OIL FILTER

1шт.

3

Engine Crankcase with Oil Filter Change, 6.7 Liters (1.8 gal)

1шт.

4

PW11P01038P1

AIR FILTER

Inner

1шт.

4

PW11P00012S005

AIR FILTER

Outer

1шт.

5

YR52V01003P1

FILTER

Return

1шт.

5

PW50V00012R200

HYDRAULIC OIL FILTER

Kit, Return

1шт.

6

PW50V00015F1

STRAINER ASSY.

Suction

1шт.

.

Hydraulic System Capacity, 48 Liters (12.7 gal)

1шт.

7

Hydraulic Tank, 38 Liters (10.0 gal)

1шт.

8

YN57V00002S010

ELEMENT

Breather

1шт.

9

VV11980255800

FUEL FILTER

Engine

1шт.

9

VV11980255710

FILTER STRAINER

1шт.

10

Fuel Tank, 38 Liters (10 gal) Diesel Fuel grade No. 2

1шт.

11

Each Travel Motor Reduction Unit, 0.7 Liters (0.18 gal) SAE 90 GL4 Gear Oil

1шт.

12

Upper Rollers, 45cc (2.7 cu.in) SAE 90 GL4 Gear Oil

1шт.

.

Idler, 80cc (4.8 cu.in) SAE 90 GL4 Gear Oil

1шт.

.

Swing Bearing, EP Grease EP/2

1шт.

13

Track Tension Adjustment, EP Grease EP/2

1шт.
