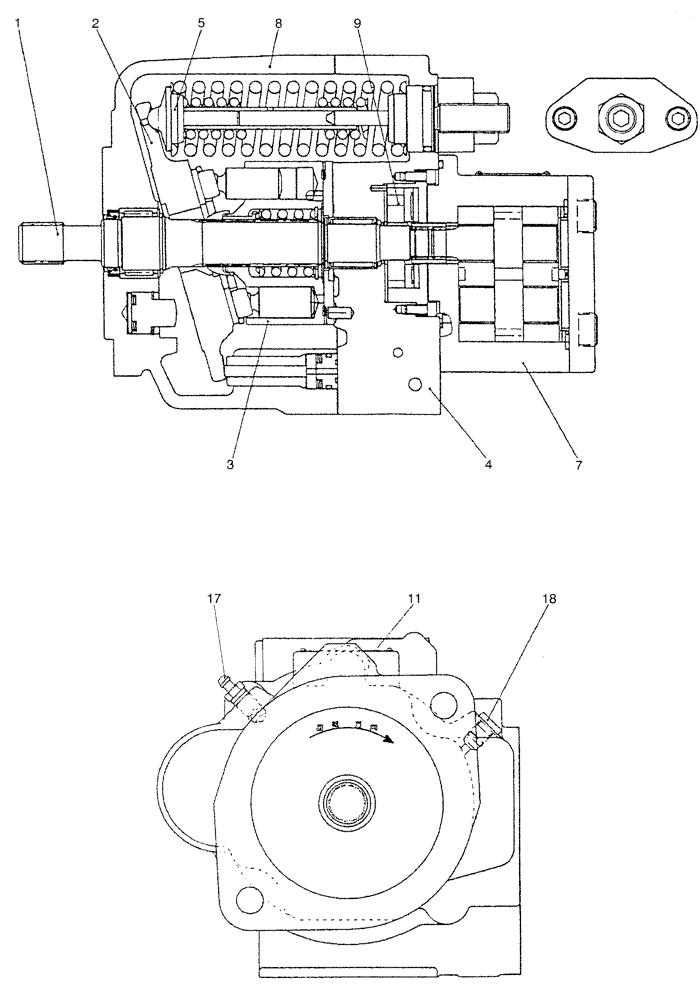

Запчасти Case CX36B (07-029) - PUMP ASSY (COOLER) (35) - HYDRAULIC SYSTEMS

PX10V00012F1

HYDRAULIC PUMP

PUMP ASSY

1шт.

1

PX10V01004F1

SHAFT ASSY.

SEE FIG. 07-021

1шт.

2

PX10V01005F1

BLOCK ASSY.

SEE FIG. 07-022

1шт.

3

PX10V01006F1

ROTATOR

SEE FIG. 07-023

1шт.

4

PX10V01007F1

COVER ASSY

SEE FIG. 07-024

1шт.

5

PX10V01008F1

SPRING

SEE FIG. 07-025

1шт.

7

PX10V00014F1

PUMP

GEAR, SEE FIG. 07-028

1шт.

8

PX10V01009F1

HOUSING

SEE FIG. 07-030

1шт.

9

PX10V00015F1

PUMP

SEE FIG. 07-026

1шт.

11

PM10V00013S011

LABEL

1шт.

17

PY10V00007S017

BREATHER

1шт.

18

2441U720S49

PLUG

1шт.
