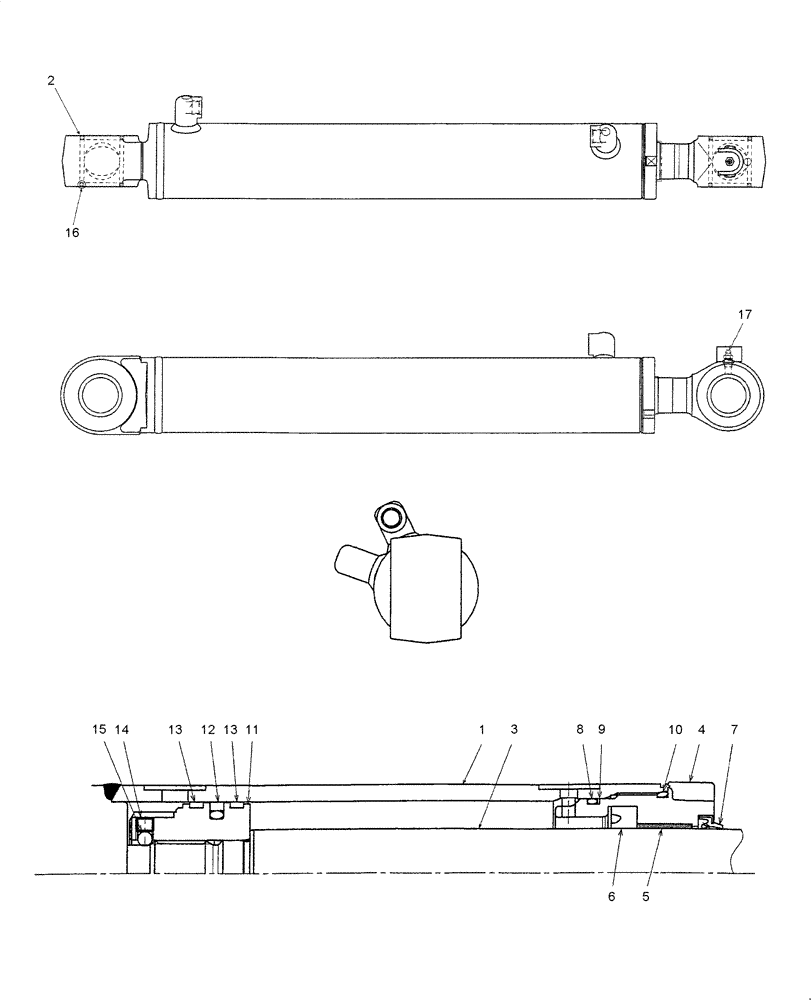

Запчасти Case CX36B (HC770-01[1]) - CYLINDER ASSY, SWING (35) - HYDRAULIC SYSTEMS

PX01V00042F1%C

CYLINDER

Swing, Incl. 1 - 17

1шт.

1

NSS

NOT SOLD SEPARAT

Tube, Cylinder

1шт.

2

PX01V00042S002

BUSHING

2шт.

3

NSS

NOT SOLD SEPARAT

Rod, Piston

1шт.

4

PX01V00042S004

CYLINDER HEAD

1шт.

5

2438U1169S4

BUSHING

1шт.

6

2438U635S3

RING

1шт.

7

PH01V00006S006

RING

1шт.

8

ZD12G07500

O-RING,74.40mm ID x 80.60mm OD x 3.10mm

1шт.

9

PH01V00015S008

BACK-UP RING

1шт.

10

ZD12G08000

O-RING,79.40mm ID x 85.60mm OD x 3.10mm

1шт.

11

PX01V00042S011

PISTON

1шт.

12

2438U852S15

RING

1шт.

13

PH01V00015S017

RING

2шт.

14

2438U1057S16

SET SCREW

1шт.

15

2436U946S11

BALL

1шт.

16

PR01V00002S027

SEAL

4шт.

17

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

1шт.

PX01V00042R100C

TUBE

KIT, REPAIR, Incl. 1, 2, 16

1шт.

PX01V00042R200C

ROD

KIT, REPAIR, Incl. 2, 3, 16

1шт.

PX01V00042R300

SEAL

Incl. 6 - 10, 12, 13

1шт.
