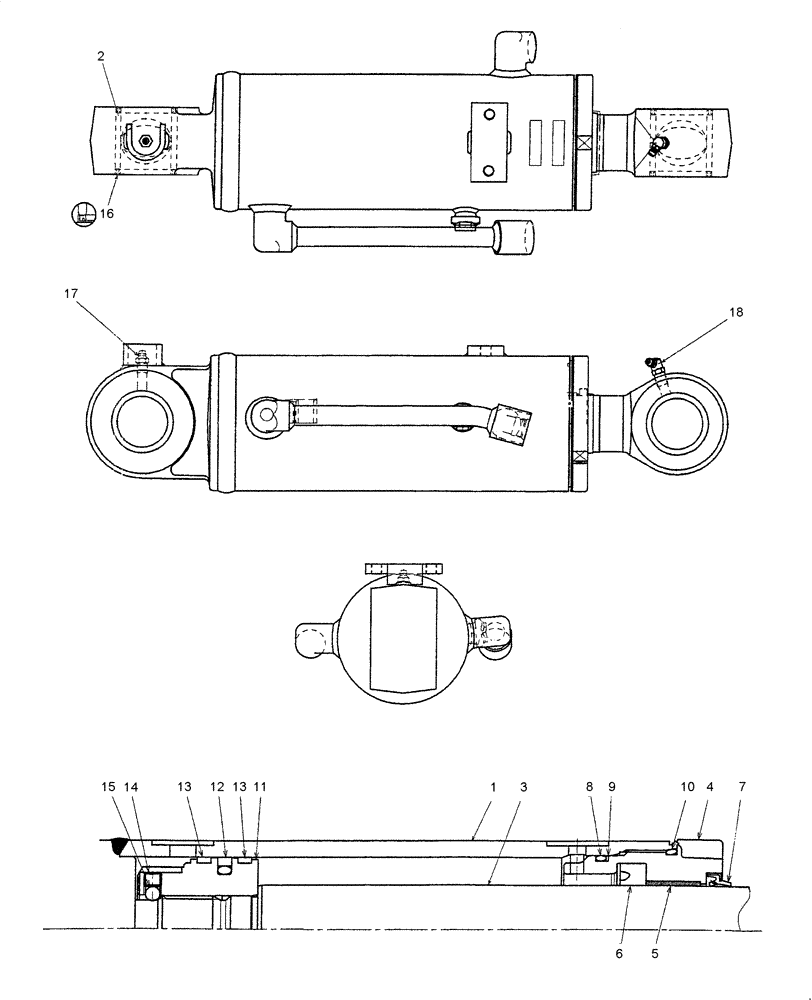

Запчасти Case CX36B (HC750-01[1]) - DOZER CILINDER (35) - HYDRAULIC SYSTEMS

PX01V00043F1%C

CYLINDER

Dozer, Incl. 1 - 18

1шт.

1

NSS

NOT SOLD SEPARAT

Tube, Cylinder

1шт.

2

PX01V00043S002

BUSHING

2шт.

3

NSS

NOT SOLD SEPARAT

Rod, Piston

1шт.

4

PX01V00043S004

CYLINDER HEAD

1шт.

5

2438U1163S4

BUSHING

1шт.

6

2438U345S15

RING

1шт.

7

PH01V00011S006

GASKET

1шт.

8

ZD12G09500

O-RING,3.1mm Thk x 94.4mm ID, 90 Duro

1шт.

9

PY01V00030S008

BACK-UP RING

1шт.

10

ZD12G10000

O-RING,99.40mm ID x 105.60mm OD x 3.10mm

1шт.

11

PX01V00043S011

PISTON

1шт.

12

2438U827S20

SEALING RING

SEALRING

1шт.

13

PY01V00030S017

RING

2шт.

14

2438U986S18

SET SCREW

1шт.

15

2436U281S37

BALL

1шт.

16

PR01V00002S027

SEAL

4шт.

17

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

1шт.

18

ZG91V02000

LUBE NIPPLE,67 Degree x 1/8" PT

1шт.

PX01V00043R100C

TUBE

KIT, REPAIR, Incl. 1, 2, 16

1шт.

PX01V00043R200C

ROD

KIT, REPAIR, Incl. 2, 3, 16

1шт.

PX01V00043R300

SEAL

Incl. 6 - 10, 12, 13

1шт.
