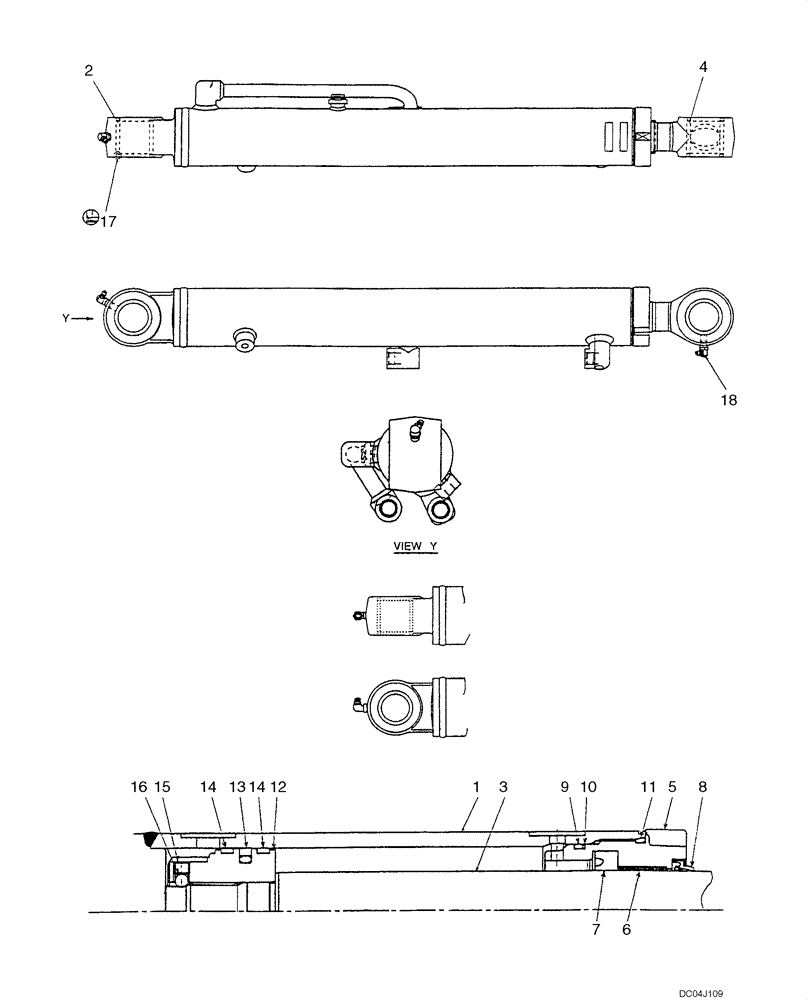

Запчасти Case CX36B (HC700-01[1]) - CYLINDER BUCKET (35) - HYDRAULIC SYSTEMS

PX01V00041F3%C

CYLINDER

Bucket, Incl. 1 - 18

1шт.

1

NSS

NOT SOLD SEPARAT

Tube, Cylinder

1шт.

2

PV12B01186D1

BUSHING

1шт.

3

NSS

NOT SOLD SEPARAT

1шт.

4

PX01V00041S004

BUSHING

1шт.

5

PX01V00041S005

CYLINDER HEAD

1шт.

6

PX01V00041S006

BUSHING

1шт.

7

2438U477S6

RING

1шт.

8

PH01V00004S006

WIPER

1шт.

9

ZD12G06000

O-RING,59.40mm ID x 65.60mm OD x 3.10mm

1шт.

10

PW01V00046S008

BACK-UP RING,62mm ID x 68mm OD x 2.5mm Thk

1шт.

11

ZD12G06500

O-RING,64.40mm ID x 70.60mm OD x 3.10mm

1шт.

12

PX01V00041S012

PISTON

1шт.

13

2438U1289S16

RING,48mm ID x 58mm OD x 5mm Thk

1шт.

14

PW01V00046S012

RING,51mm ID x 67mm OD x 3mm Thk

2шт.

15

2438U1057S16

SET SCREW

1шт.

16

2436U946S11

BALL

1шт.

17

PR01V00002S027

SEAL

4шт.

18

ZG91U02000

LUBE NIPPLE

2шт.

PX01V00041R200C

ROD

KIT, REPAIR, Incl. 3, 4, 17

1шт.

PX01V00041R300

REPAIR KIT

Incl. 7-11, 13, 14

1шт.

PX01V00041R400C

TUBE

KIT, REPAIR, Incl. 1, 2, 17

1шт.
