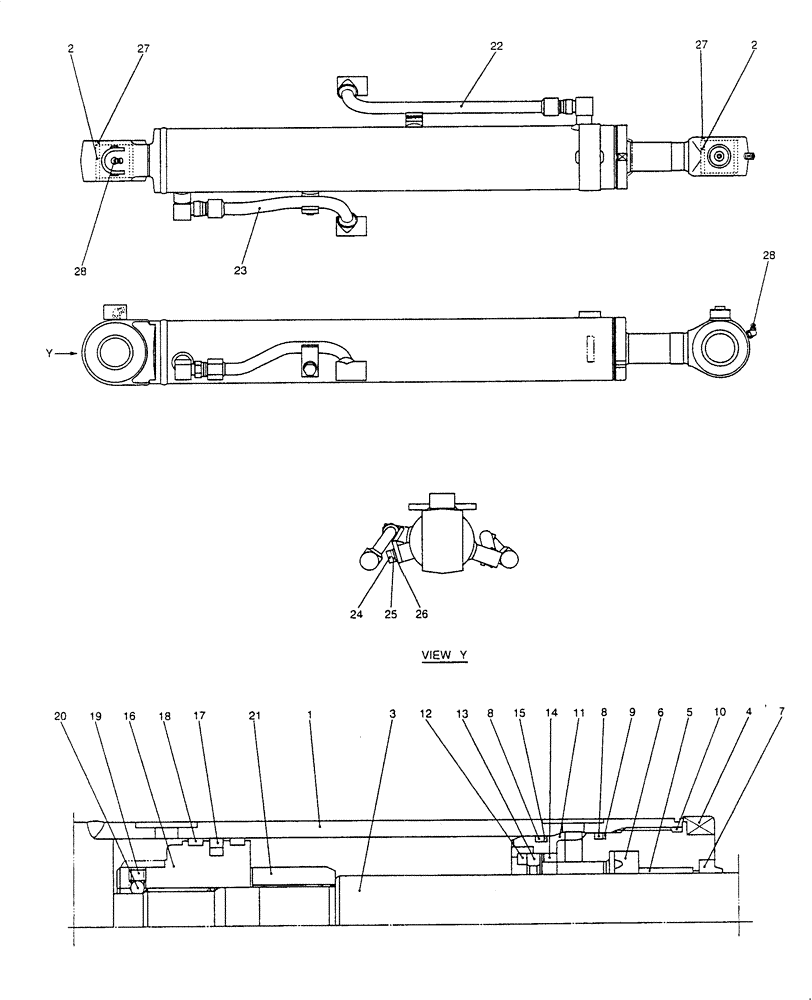

Запчасти Case CX36B (HC631-01[1]) - LIFT CYLINDER - (CAB) (35) - HYDRAULIC SYSTEMS

PX01V00053F1%C

CYLINDER

Boom, Cab Models, Incl. 1 - 28

1шт.

1

NSS

NOT SOLD SEPARAT

Tube, Cylinder

1шт.

2

PW01V01086D1

BUSHING

2шт.

3

NSS

NOT SOLD SEPARAT

Rod, Piston

1шт.

4

PX01V00042S004

CYLINDER HEAD

1шт.

5

2438U1169S4

BUSHING

1шт.

6

2438U635S3

RING

1шт.

7

PH01V00006S006

RING

1шт.

8

ZD12G07500

O-RING,74.40mm ID x 80.60mm OD x 3.10mm

2шт.

9

PH01V00015S008

BACK-UP RING

1шт.

10

ZD12G08000

O-RING,79.40mm ID x 85.60mm OD x 3.10mm

1шт.

11

PX01V00045S011

HOLDER

1шт.

12

PH01V00015S024

CAP

1шт.

13

PH01V00015S011

SEAL

1шт.

14

PX01V00045S014

COLLAR

1шт.

15

PW01V00014S008

BACK-UP RING

1шт.

16

PX01V00045S017

PISTON

1шт.

17

2438U852S15

RING

1шт.

18

PH01V00015S017

RING

2шт.

19

2438U1057S16

SET SCREW

1шт.

20

2436U946S11

BALL

1шт.

21

PX01V00045S022

CUSHION

1шт.

22

PX01V00053S022

TUBE ASSY.

1шт.

23

PW01V00064S023

TUBE ASSY.

1шт.

24

PM01V00060S025

CAPSCREW

2шт.

25

ZW22K10000

LOCK WASHER

2шт.

26

PR01V00002S024

WASHER

2шт.

27

PR01V00002S027

SEAL

4шт.

28

ZG91V02000

LUBE NIPPLE,67 Degree x 1/8" PT

2шт.

PX01V00053R100C

REPAIR KIT

Incl. 1, 2, 27

1шт.

PX01V00045R200C

ROD

KIT, REPAIR, Incl. 2, 3, 27

1шт.

PX01V00045R300

REPAIR KIT

Incl. 6 - 10, 15, 17, 18

1шт.
