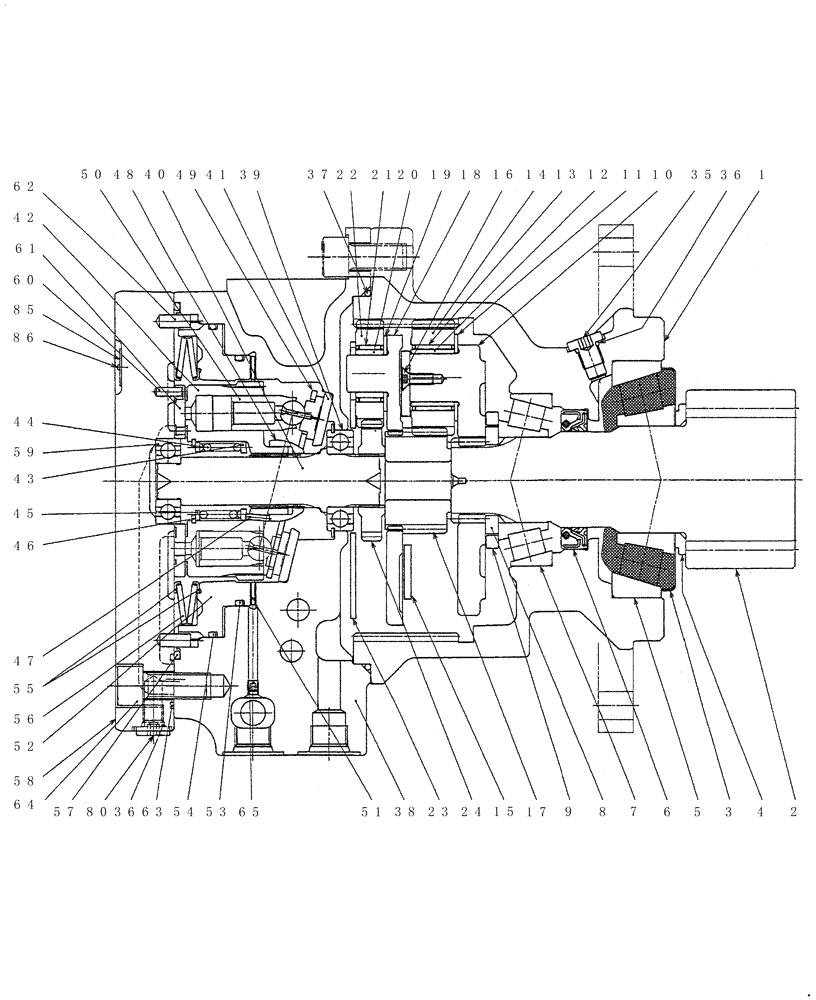

Запчасти Case CX36B (HC300-01[2]) - SLEW MOTOR - COMPONENTS (35) - HYDRAULIC SYSTEMS

PX15V00024F1

HYDRAULIC MOTOR

Swing; Incl. 1 - 86, And All Parts on Preceeding Figure

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

NSS

NOT SOLD SEPARAT

Shaft

1шт.

3

NSS

NOT SOLD SEPARAT

Plate

1шт.

4

PW15V00016S004

COLLAR

1шт.

5

NSS

NOT SOLD SEPARAT

Bearing, Roller

1шт.

6

YN15V00005S121

OIL SEAL

1шт.

7

NSS

NOT SOLD SEPARAT

Bearing, Roller

1шт.

8

NSS

NOT SOLD SEPARAT

Plate

2шт.

9

PM15V00014S009

COLLAR

1шт.

10

PX15V01004S111

HOLDER

1шт.

11

PX15V01004S112

THRUST WASHER

4шт.

12

PX15V01004S113

RACE

4шт.

13

PX15V01004S114

NEEDLE BEARING

4шт.

14

PX15V01004S115

GEAR

4шт.

15

PW15V00016S015

PLATE

1шт.

16

PH10V00001S103

SCREW

4шт.

17

PX15V01004S212

GEAR

1шт.

18

PW15V00016S018

HOLDER

1шт.

19

PX15V01004S132

WASHER

4шт.

20

PX15V01004S133

RACE

4шт.

21

PX15V01004S134

NEEDLE BEARING

4шт.

22

PW15V00016S022

GEAR

4шт.

23

NSS

NOT SOLD SEPARAT

Plate, Thrust

1шт.

24

PX15V00018S024

GEAR

1шт.

35

NSS

NOT SOLD SEPARAT

Plug

1шт.

36

ZD12P00800

O-RING,1.9mm Thk x 7.8mm ID, 90 Duro

3шт.

37

PM15V00014S019

O-RING

1шт.

38

PW15V00016S038

CASE

1шт.

39

PW15V00016S039

BALL BEARING

1шт.

40

PW15V00016S040

SHAFT

1шт.

41

PX15V01001S109

THRUST PLATE

1шт.

42

NSS

NOT SOLD SEPARAT

Block, Cylinder

1шт.

43

2441U942S36

COLLAR

1шт.

44

PX15V01001S115

SPRING

1шт.

45

PX15V01001S116

WASHER

1шт.

46

ZR26X03700

SNAP RING

1шт.

47

PX15V01001S113

PIN

3шт.

48

2441U942S41

HOLDER

1шт.

49

PM15V00014S031

PLATE

1шт.

50

NSS

NOT SOLD SEPARAT

Piston Assy

9шт.

51

PM15V00014S033

PLATE

1шт.

52

PM15V00014S034

BRAKE

1шт.

53

ZD12G11000

O-RING,109.40mm ID x 115.60mm OD x 3.10mm

1шт.

54

ZD12G13500

O-RING,134.40mm ID x 140.60mm OD x 3.10mm

1шт.

55

PM15V00014S037

SPRING SEAT

2шт.

56

PM15V00014S038

SPRING-DISC

1шт.

57

PX15V00005S027

O-RING

1шт.

58

PM15V00014S040

COVER

1шт.

59

2441U942S48

BALL BEARING

1шт.

60

2441U901S19

PIN

1шт.

61

PX15V01001S105

PLATE

1шт.

62

PM15V00014S044

PIN

2шт.

63

ZD12P02100

O-RING,2.4mm Thk x 20.8mm ID, 90 Duro

2шт.

64

ZS23C12030

SCREW,Hex Socket Head, M12 x 30mm

7шт.

65

2441U942S61

ORIFICE

1шт.

80

LQ15V00007S015

PLUG

2шт.

85

NSS

NOT SOLD SEPARAT

Name Plate

1шт.

86

NSS

NOT SOLD SEPARAT

Pin

2шт.

PM15V00014R100

REPAIR KIT

Incl. 36, 37, 53, 54, 57, 63, 67 - 69, 73, 83

1шт.

PM15V00014R200

REPAIR KIT

Incl. 42, 50

1шт.

PM15V00014R400

REPAIR KIT

Incl. 66 - 70

1шт.

PW15V00016R400

REPAIR KIT

Incl. 23

1шт.

PX15V00024R500

REPAIR KIT

Incl. 1 - 9, 35 - 37

1шт.
