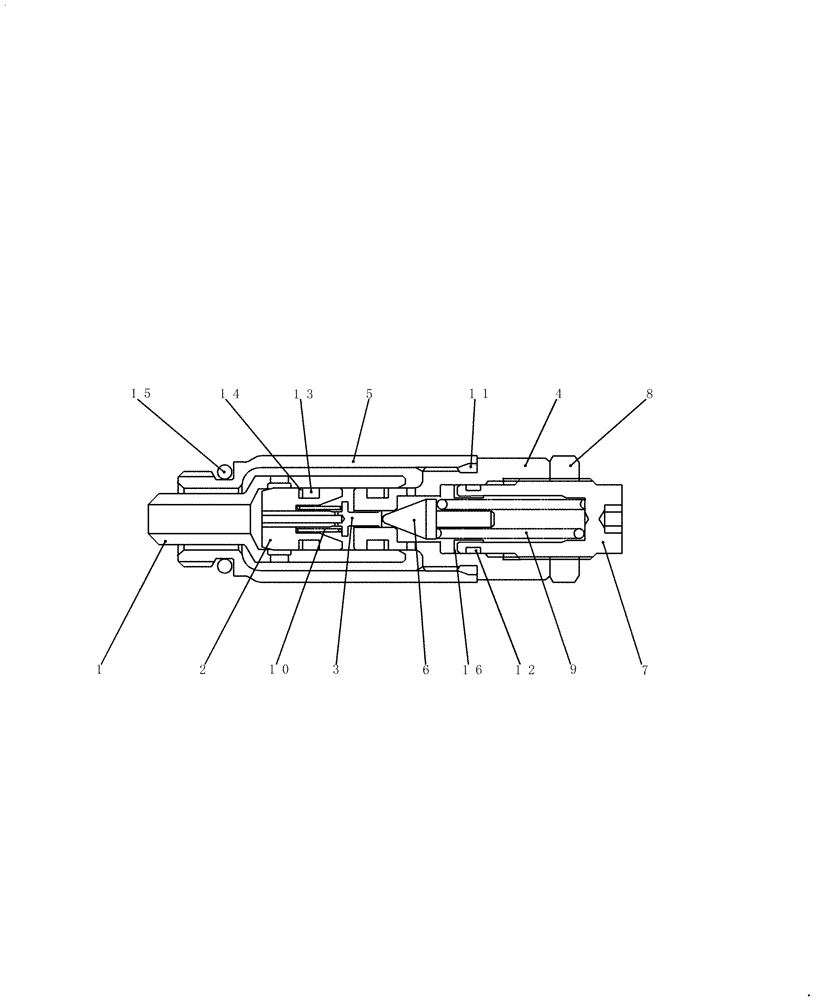

Запчасти Case CX36B (HC019-01[1]) - HYDRAULIC CONTROL VALVE - COMPONENTS (35) - HYDRAULIC SYSTEMS

PM22V00005F3

VALVE PRESSURE RELIE

25.5 MPa at 5.0 L/min, Incl. 1 - 16

1шт.

PM22V00005F4

VALVE PRESSURE RELIE

27.5 MPa at 5.0 L/min, Incl. 1 - 16

1шт.

1

NSS

NOT SOLD SEPARAT

Socket

1шт.

2

NSS

NOT SOLD SEPARAT

Valve, Control

1шт.

3

NSS

NOT SOLD SEPARAT

Piston

1шт.

4

NSS

NOT SOLD SEPARAT

Body

1шт.

5

NSS

NOT SOLD SEPARAT

Body

1шт.

6

NSS

NOT SOLD SEPARAT

Valve, Control

1шт.

7

NSS

NOT SOLD SEPARAT

Screw, Adjust

1шт.

8

NSS

NOT SOLD SEPARAT

Nut

1шт.

9

NSS

NOT SOLD SEPARAT

Spring

1шт.

10

NSS

NOT SOLD SEPARAT

Spring

1шт.

11

ZD12P01500

O-RING

1шт.

12

2436R612S13

O-RING

1шт.

13

PH22V00003S013

O-RING

2шт.

14

PH22V00003S014

BACK-UP RING

2шт.

15

ZD12P01400

O-RING

1шт.

16

NSS

NOT SOLD SEPARAT

Guide

1шт.
