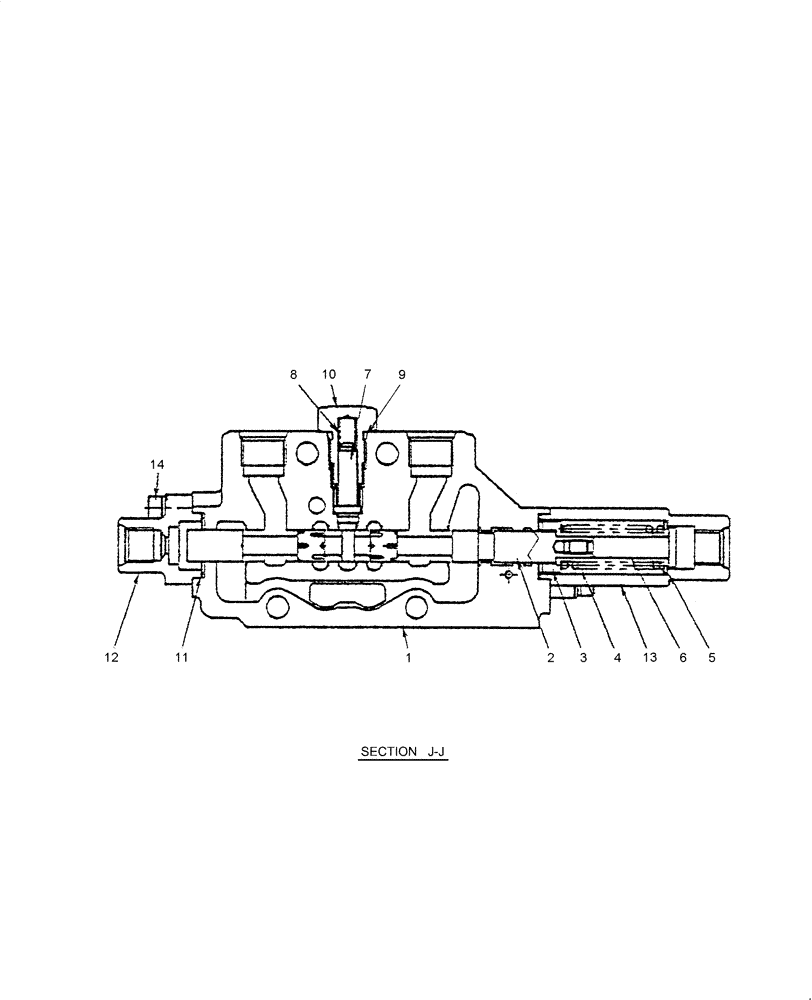

Запчасти Case CX36B (HC010-01[1]) - HYDRAULIC CONTROL VALVE - COMPONENTS (PROPELLING L/H) (35) - HYDRAULIC SYSTEMS

PX30V00056F1

VALVE SECTION

Travel Left, Incl. 1 - 14

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

NSS

NOT SOLD SEPARAT

Seat, Spring

1шт.

4

NSS

NOT SOLD SEPARAT

Spring

1шт.

5

NSS

NOT SOLD SEPARAT

Seat, Spring

1шт.

6

NSS

NOT SOLD SEPARAT

Bolt, Spacer

1шт.

7

PW30V01009S002

POPPET

1шт.

8

PH30V00014S013

SPRING

1шт.

9

ZD12P01100

O-RING

1шт.

10

PW30V01009S005

PLUG

1шт.

11

PW30V01008S011

O-RING

2шт.

12

PM30V00021S012

COVER

1шт.

13

PM30V00021S013

COVER

1шт.

14

PM30V00021S014

SCREW

4шт.

PX30V00054R100

REPAIR KIT

Incl 2 - 6

1шт.
