(HC006-01[1]) - HYDRAULIC CONTROL VALVE - COMPONENTS (SERVICE)

Запчасти Case CX36B (HC006-01[1]) - HYDRAULIC CONTROL VALVE - COMPONENTS (SERVICE) (35) - HYDRAULIC SYSTEMS

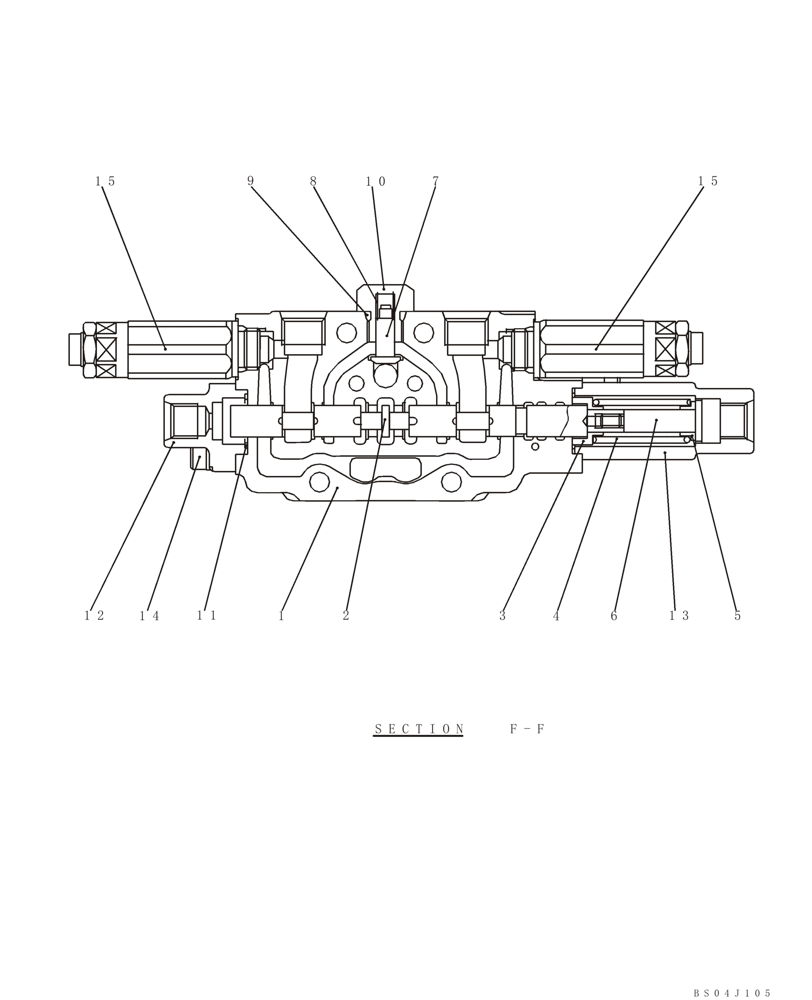

Схема запчастей Case CX36B - (HC006-01[1]) - HYDRAULIC CONTROL VALVE - COMPONENTS (SERVICE) (35) - HYDRAULIC SYSTEMS
12
7
9
1
5
13
11
8
15
section f-f
15
3
14
bs04j105
6
4
2
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PX30V00064F1

VALVE SECTION

Service, Incl. 1 - 15

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

NSS

NOT SOLD SEPARAT

Seat, Spring

1шт.

4

NSS

NOT SOLD SEPARAT

Spring

1шт.

5

NSS

NOT SOLD SEPARAT

Seat, Spring

1шт.

6

NSS

NOT SOLD SEPARAT

Bolt, Spacer

1шт.

7

PF30V00005S009

POPPET

1шт.

8

PF30V00005S010

SPRING

1шт.

9

ZD12P01100

O-RING

1шт.

10

PF30V00005S012

PLUG

1шт.

11

PW30V01008S011

O-RING

2шт.

12

PM30V00021S012

COVER

1шт.

13

PM30V00021S013

COVER

1шт.

14

PM30V00021S014

SCREW

4шт.

15

PM22V00005F3

VALVE PRESSURE RELIE

Overload Relief, See Figure HC019

2шт.

PX30V00052R100

REPAIR KIT

Incl. 2 - 6

1шт.
