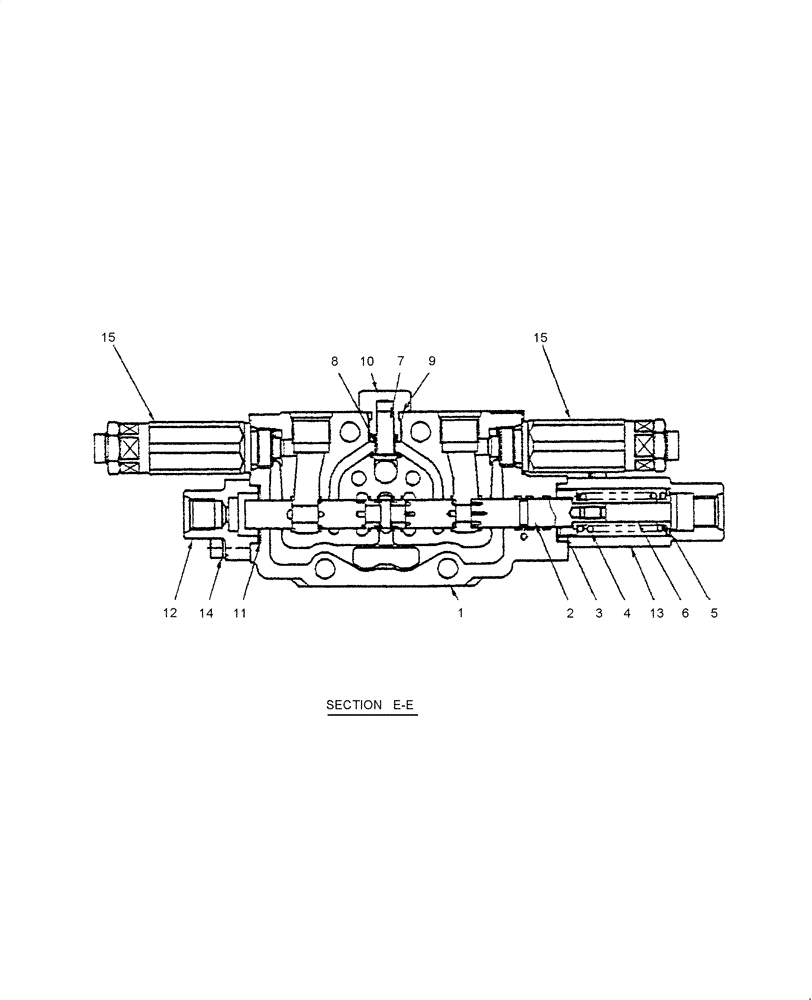

Запчасти Case CX36B (HC005-01[1]) - HYDRAULIC CONTROL VALVE - COMPONENTS (ARM) (35) - HYDRAULIC SYSTEMS

PX30V00051F1

VALVE SECTION

Arm, Incl. 1 - 15

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

NSS

NOT SOLD SEPARAT

Seat, Spring

1шт.

4

NSS

NOT SOLD SEPARAT

Spring

1шт.

5

NSS

NOT SOLD SEPARAT

Seat, Spring

1шт.

6

NSS

NOT SOLD SEPARAT

Bolt, Spacer

1шт.

7

PH30V00003S006

POPPET

1шт.

8

PH30V00003S007

SPRING

1шт.

9

ZD12P01100

O-RING

1шт.

10

PH30V00003S009

PLUG

1шт.

11

PW30V01008S011

O-RING

2шт.

12

PM30V00021S012

COVER

1шт.

13

PM30V00021S013

COVER

1шт.

14

PM30V00021S014

SCREW

4шт.

15

PM22V00005F3

VALVE PRESSURE RELIE

Overload Relief, See Figure HC019

2шт.

PX30V00051R100

REPAIR KIT

Incl. 2 - 6

1шт.
