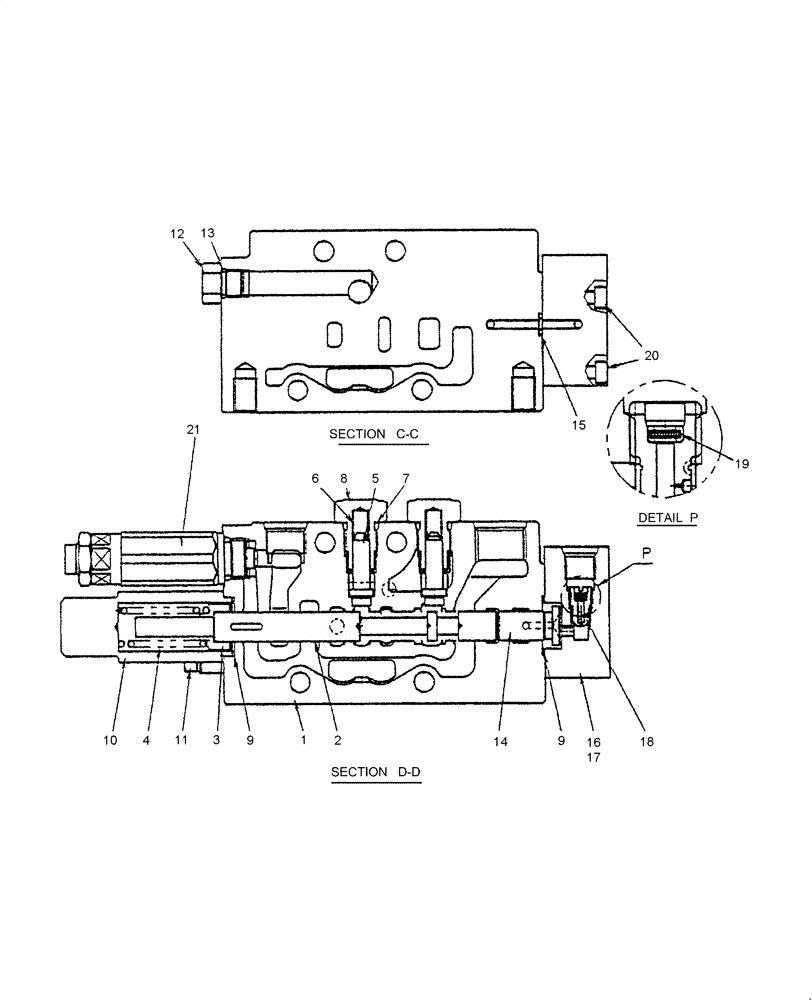

Запчасти Case CX36B (HC004-01[1]) - HYDRAULIC CONTROL VALVE - COMPONENTS (SUPPLY & STRAIGHT TRAVEL) (35) - HYDRAULIC SYSTEMS

PX30V00050F1

VALVE SECTION

Supply And Straight Travel, Incl. 1 - 21

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

PX30V00050S001

SEAT

1шт.

4

PW30V01013S013

SPRING

1шт.

5

PW30V01009S002

POPPET

2шт.

6

PH30V00014S013

SPRING

2шт.

7

ZD12P01100

O-RING

2шт.

8

PW30V01009S005

PLUG

2шт.

9

PW30V01008S011

O-RING

2шт.

10

PM30V00027S015

COVER

1шт.

11

PM30V00021S014

SCREW

2шт.

12

PX30V00050S012

PLUG

1шт.

13

PX30V00050S013

O-RING

1шт.

14

PX30V00050S014

PISTON

1шт.

15

ZD12P00600

O-RING

1шт.

16

PX30V00050S016

CAP

1шт.

17

2436U1317S22

PLUG

1шт.

18

PX30V00050S018

ORIFICE

1шт.

19

PX30V00050S019

FILTER

1шт.

20

ZS23C05030

CAPSCREW,Hex Socket Head, M5 x 30mm

3шт.

21

PR22V00004F6

VALVE PRESSURE RELIE

See Figure HC025

1шт.
