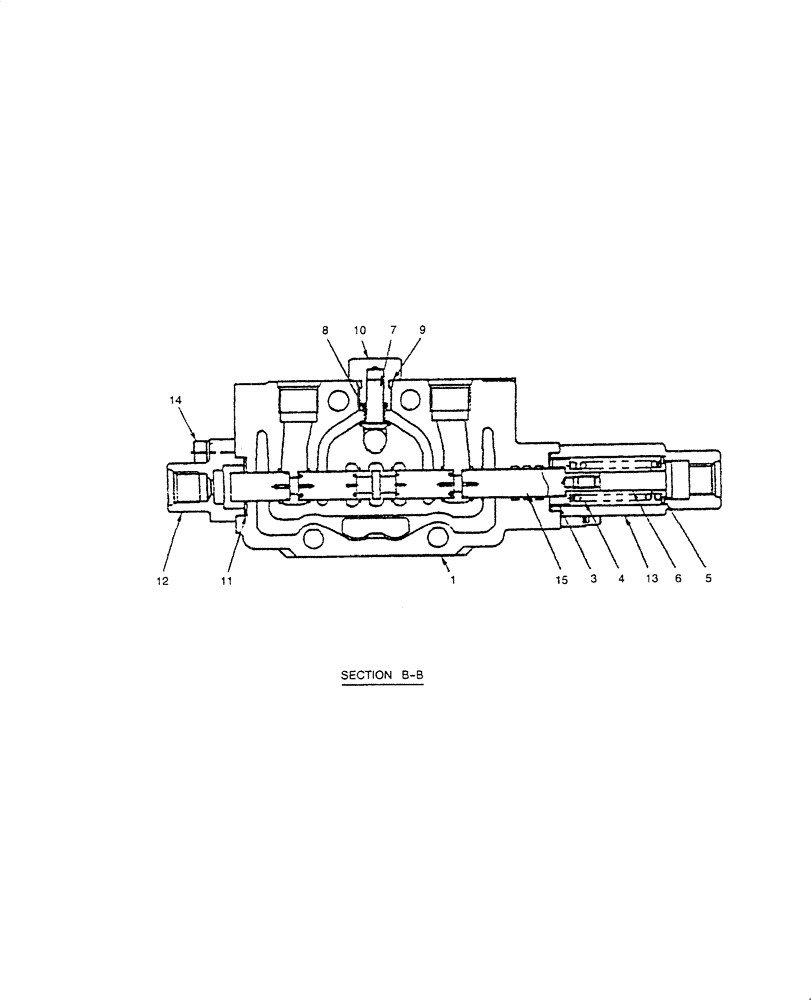

Запчасти Case CX36B (HC003-01[1]) - HYDRAULIC CONTROL VALVE - COMPONENTS (SLEW) (35) - HYDRAULIC SYSTEMS

PX30V00049F2

VALVE SECTION

Slewing, Incl. 1 - 15

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

3

NSS

NOT SOLD SEPARAT

Seat, Spring

1шт.

4

NSS

NOT SOLD SEPARAT

Spring

1шт.

5

NSS

NOT SOLD SEPARAT

Seat, Spring

1шт.

6

NSS

NOT SOLD SEPARAT

Bolt, Spacer

1шт.

7

PH30V00003S006

POPPET

1шт.

8

PH30V00003S007

SPRING

1шт.

9

ZD12P01100

O-RING

1шт.

10

PH30V00003S009

PLUG

2шт.

11

PW30V01008S011

O-RING

1шт.

12

PM30V00021S012

COVER

1шт.

13

PM30V00021S013

COVER

4шт.

14

PM30V00021S014

SCREW

1шт.

15

NSS

NOT SOLD SEPARAT

Spool

1шт.

PX30V00049R200

REPAIR KIT

Incl. 1, 4 - 6, 15

1шт.
