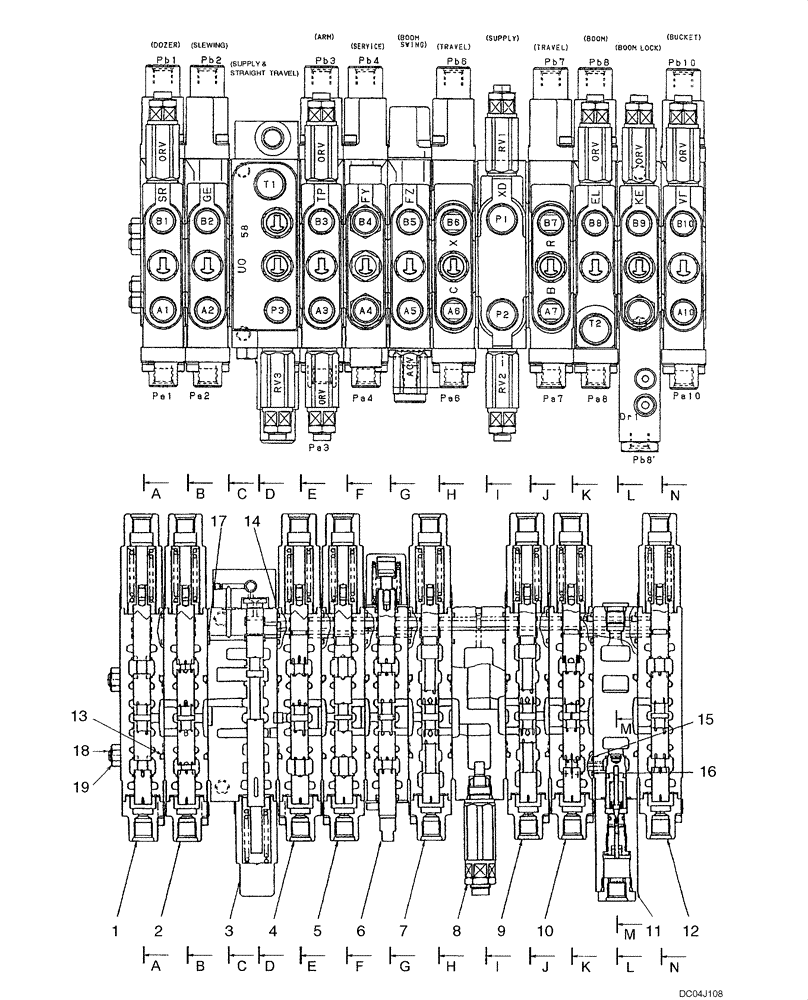

Запчасти Case CX36B (HC001-01[1]) - HYDRAULIC CONTROL VALVE - COMPONENTS (35) - HYDRAULIC SYSTEMS

PX30V00059F1

CONTROL VALVE

Incl. 1 - 19

1шт.

1

PX30V00048F1

VALVE SECTION

Dozer, See Figure HC002

1шт.

2

PX30V00049F2

VALVE SECTION

Slewing, See Figure HC003

1шт.

3

PX30V00050F1

VALVE SECTION

Supply And Straight Travel, See Figure HC004

1шт.

4

PX30V00051F1

VALVE SECTION

Arm, See Figure HC005

1шт.

5

PX30V00064F1

VALVE SECTION

Service, See Figure HC006

1шт.

6

PX30V00065F2

CONTROL VALVE

Boom Swing, See Figure HC007

1шт.

7

PX30V00054F1

VALVE SECTION

Travel Right, See Figure HC008

1шт.

8

PX30V00055F1

VALVE SECTION

Supply, See Figure HC009

1шт.

9

PX30V00056F1

VALVE SECTION

Travel Left, See Figure HC010

1шт.

10

PX30V00057F1

VALVE SECTION

Boom, See Figure HC011

1шт.

11

PM30V00048F1

VALVE SECTION

Boom Lock, See Figure HC012

1шт.

12

PX30V00058F1

VALVE SECTION

Bucket, See Figure HC013

1шт.

13

PH30V00003S015

O-RING

11шт.

14

ZD11P01800

O-RING

10шт.

15

ZD12P01000

O-RING

1шт.

16

ZD12P00900

O-RING

1шт.

17

ZD11P00600

O-RING

1шт.

18

PW30V00017S022

BOLT

4шт.

19

ZN18C08007

NUT

4шт.
