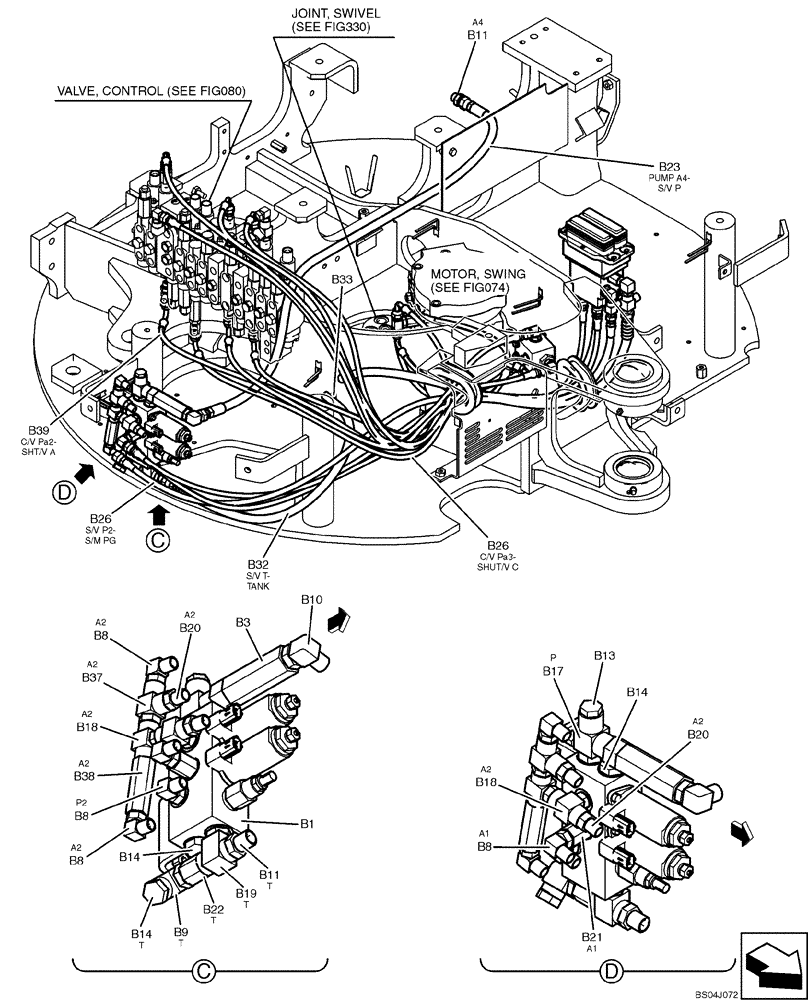

Запчасти Case CX36B (161-17[2]) - CONTROL LINES, REMOTE (35) - HYDRAULIC SYSTEMS

b1

PX35V00003F1

VALVE

See Figure HC850-01

1шт.

b3

PY50V00001F1

FILTER

1шт.

b8

HH35S04004G1

90 ELBOW

4шт.

b9

2444Z3155

90 ELBOW,PF 3/8" Fem x PF 3/8" Male

1шт.

b10

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

1шт.

b11

HH25S06006G1

HYD CONNECTOR

2шт.

b13

ZE72X04000

PLUG

1шт.

b14

ZE72X06000

PLUG

3шт.

b17

PW64H01011P1

TEE

1шт.

b18

2444Z4239

TEE

2шт.

b19

YN64H01048P1

TEE,90 Degree, PF 3/8" x PF 3/8", O-Ring

1шт.

b20

HH25S04004G1

HYD CONNECTOR

2шт.

b21

2444Z2525

HYD CONNECTOR

1шт.

b22

2444Z2891

HYD CONNECTOR

1шт.

b23

HX25L06135DY

HOSE,9.5mm ID x 1350mm L

1шт.

b26

HX33L03110DX

HOSE,4.8mm ID x 1100mm L

2шт.

b32

PW68H01023D9

HOSE,9.5mm ID x 620mm L

1шт.

b33

ZC16X01800

CLIP

1шт.

b37

HH55Q04004G1

TEE,1/4" ORB x 1/4" JIC x 1/4" JIC

1шт.

b38

HH25R04004G3

CONNECTION

1шт.

b39

HX33L03120DX

HOSE,4.8mm ID x 1200mm L

1шт.
