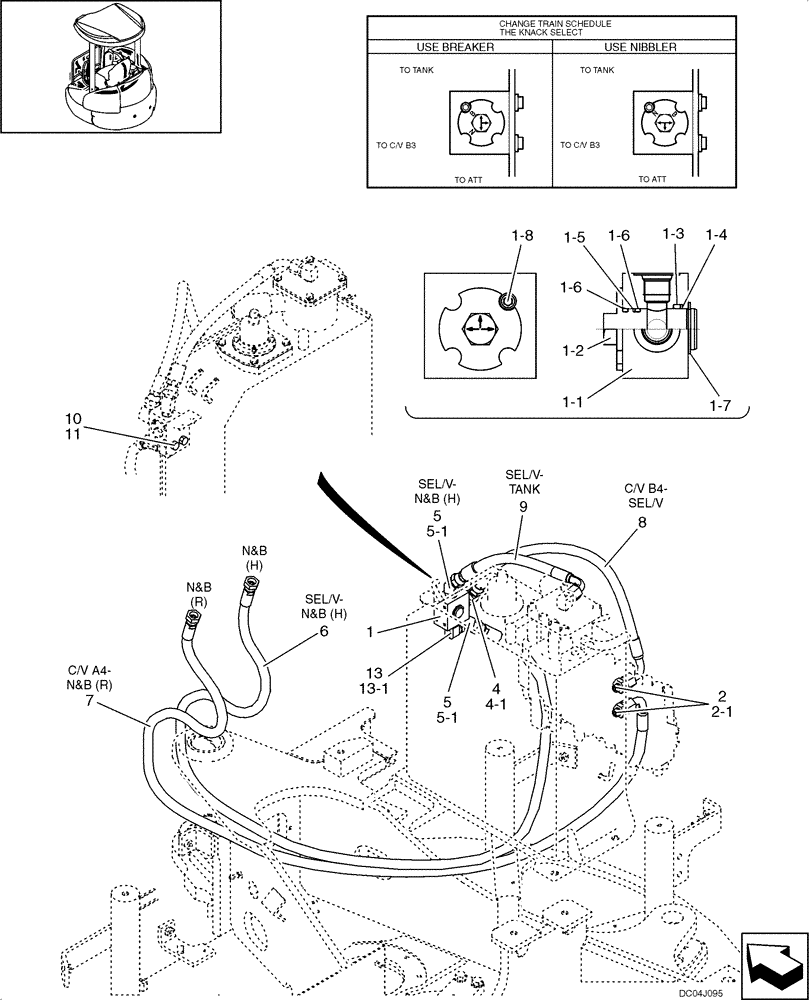

Запчасти Case CX36B (103-60[1]) - PUMP/CONTROL VALVE PIPING (NIBBLER & BREAKER) (35) - HYDRAULIC SYSTEMS

1

PA30V00005F1

VALVE

Selector, Incl. 1-1 - 1-8

1шт.

1-1

PA30V01011P1

BODY

1шт.

1-2

PA30V01012P1

SHAFT

1шт.

1-3

ZD12G02500

O-RING,24.40mm ID x 30.60mm OD x 3.10mm

1шт.

1-4

ZD75G02500

BACK-UP RING

1шт.

1-5

ZD85P02100

RING

1шт.

1-6

ZD12P02100

O-RING,2.4mm Thk x 20.8mm ID, 90 Duro

2шт.

1-7

ZR16X02500

RING

1шт.

1-8

ZS28C06010

CAPSCREW,Hex Socket Head, M6 x 10mm

1шт.

2

HH25S08006G2

HYD CONNECTOR

Incl. 2-1

2шт.

2-1

ZD12P01400

O-RING

1шт.

4

HH35S08006G1

90 ELBOW

Incl. 4-1

1шт.

4-1

ZD12P01400

O-RING

1шт.

5

HH45S08006G1

45 ELBOW

Incl. 5-1

2шт.

5-1

ZD12P01400

O-RING

1шт.

6

PW03H01109D4

HOSE

1шт.

7

PW03H01106D6

HOSE

1шт.

8

PW03H01117D1

HOSE

1шт.

9

HX32L08042DX

HOSE,12.7mm ID x 420mm L

1шт.

10

ZS18C08020

SCREW,Hex, M8 x 20mm

4шт.

11

ZW16H08000

WASHER

4шт.

13

2444Z3155

90 ELBOW,PF 3/8" Fem x PF 3/8" Male

Incl. 13-1

1шт.

13-1

ZD12P01400

O-RING

1шт.
