(100-01[1-02]) - PUMP/CONTROL VALVE PIPING

Запчасти Case CX36B (100-01[1-02]) - PUMP/CONTROL VALVE PIPING (35) - HYDRAULIC SYSTEMS

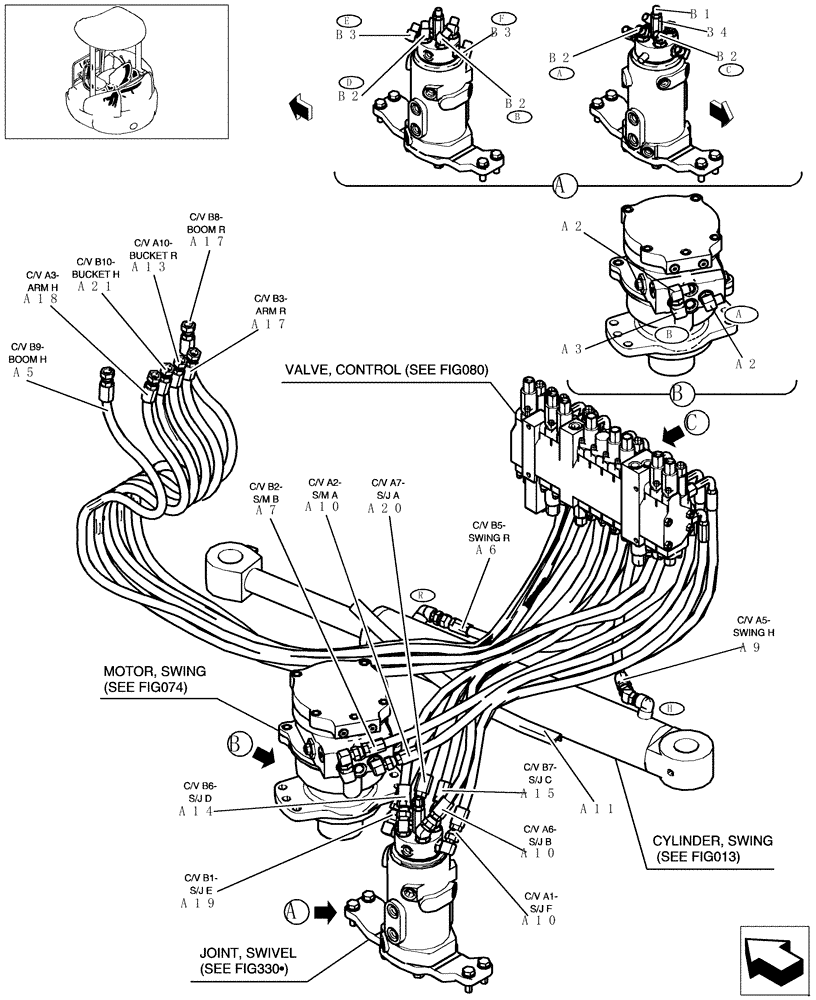

Схема запчастей Case CX36B - (100-01[1-02]) - PUMP/CONTROL VALVE PIPING (35) - HYDRAULIC SYSTEMS
a19
a2
a
b3
a5
c
b2
b3
a13
b
b2
r
a
e
b2
a10
b
a3
b
f
a
a6
a17
a10
a10
b1
a20
b4
a17
h
a2
a21
a
c
a18
a7
a14
a11
a9
b
b2
a15
d
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

a2

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

2шт.

a3

2444Z3155

90 ELBOW,PF 3/8" Fem x PF 3/8" Male

1шт.

a5

PW03H01100D7

HOSE

1шт.

a6

PW03H01101D6

HOSE,9.5mm ID x 740mm L

1шт.

a7

PW03H01101D2

HOSE,9.5mm ID x 1050mm L

1шт.

a9

HX35L06054DY

HOSE,9.5mm ID x 540mm L

1шт.

a10

HX35L06094DY

HOSE,9.5mm ID x 940mm L

3шт.

a11

YN64H01068D6

RUBBER

1шт.

a13

PW03H01099D8

HOSE

1шт.

a14

PW03H01101D3

HOSE,9.5mm ID x 1000mm L

1шт.

a15

PW03H01101D4

HOSE,9.5mm ID x 960mm L

1шт.

a17

PW03H01100D6

HOSE

1шт.

a18

PW03H01099D7

HOSE

2шт.

a19

PW03H01101D7

HOSE,9.5mm ID x 1100mm L

1шт.

a20

HX35L06090DY

HOSE,9.5mm ID x 900mm L

1шт.

a21

PW03H01099D9

HOSE

1шт.

b1

HH25S04004G1

HYD CONNECTOR

1шт.

b2

HH45S06006G1

45 ELBOW

4шт.

b3

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

2шт.

b4

2444Z4101

HYD CONNECTOR

1шт.
