(070-01[1-01]) - POWER TAKE OFF ASSY

Запчасти Case CX36B (070-01[1-01]) - POWER TAKE OFF ASSY (35) - HYDRAULIC SYSTEMS

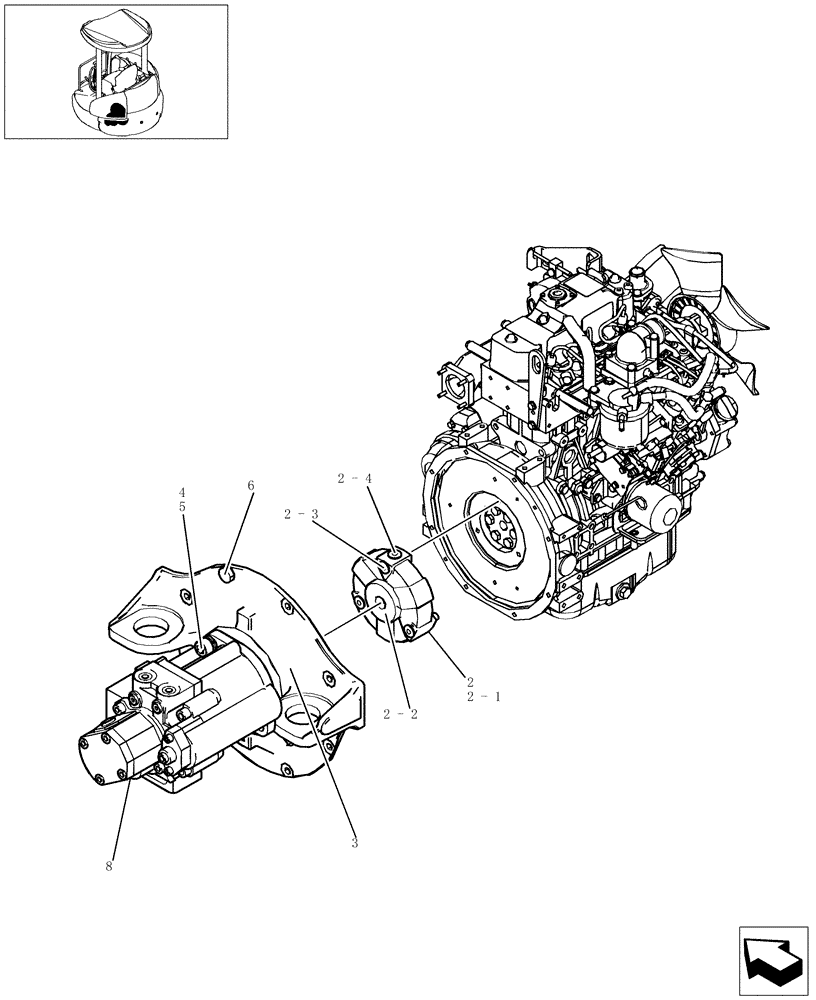

Схема запчастей Case CX36B - (070-01[1-01]) - POWER TAKE OFF ASSY (35) - HYDRAULIC SYSTEMS
3
2-2
4
2
6
2-4
2-3
5
8
2-1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2

PW30P01007F1

COUPLING

Incl. 2-1 - 2-4

1шт.

2-1

PW30P01002S001

COUPLING

1шт.

2-2

PW30P01002S002

HUB

1шт.

2-3

PW30P01002S003

CAPSCREW,Hex Socket Head, M12 x 40mm

3шт.

2-4

PY30P01003S004

CAPSCREW,Hex Socket Head, M12 x 35mm

3шт.

3

PW30P01005P1

BRACKET

1шт.

4

PV17M01003D1

SCREW

2шт.

5

ZW16K12000

WASHER

2шт.

6

ZS18C10025

SCREW,Hex, M10 x 25mm

8шт.

8

PX10V00013F1

HYDRAULIC PUMP

See Figure HC400-01

1шт.
