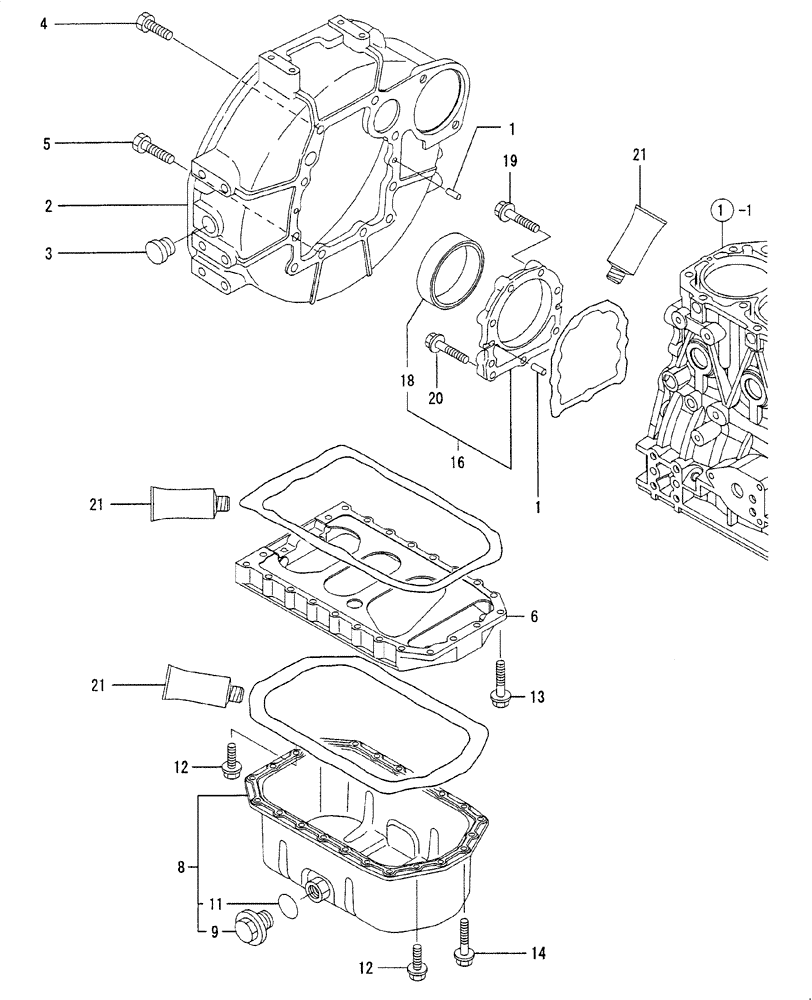

Запчасти Case CX36B (ENGINE-03[1]) - FLYWHEEL HOUSING & OIL SUMP (10) - ENGINE

1

VV12910001580

PIN,M8 x 16mm

8 x 16

4шт.

2

VV12961201600

HOUSING

Flywheel

1шт.

3

VV11962001750

CAP

Flywheel Cover

1шт.

4

VV26206100252

BOLT,M10 x 25mm

M10 x 25

6шт.

5

VV26206100302

BOLT,M10 x 30mm

M10 x 30

4шт.

6

VV12910001730

SPACER

Oil Sump

1шт.

8

VV12910001760

SUMP

Oil

1шт.

9

VV17130101640

PLUG

M22

1шт.

11

VV24341000250

O-RING

1A S-25.0

1шт.

12

VV26106080162

BOLT,M8 x 16mm

M8 x 16

4шт.

13

VV26106080252

BOLT,M8 x 25mm

M8 x 25

2шт.

14

VV26106080452

BOLT,M8 x 45mm

M8 x 45

20шт.

16

VV12910001640

BOX

Oil Seal

1шт.

18

VV12979501780

OIL SEAL

Oil

1шт.

19

VV12948601670

BOLT,M8 x 30mm

M8 x 30

6шт.

20

VV26106080352

BOLT,M8 x 35mm

M8 x 35

3шт.

21

VV97777001212

GASKET

Liquid

1шт.
