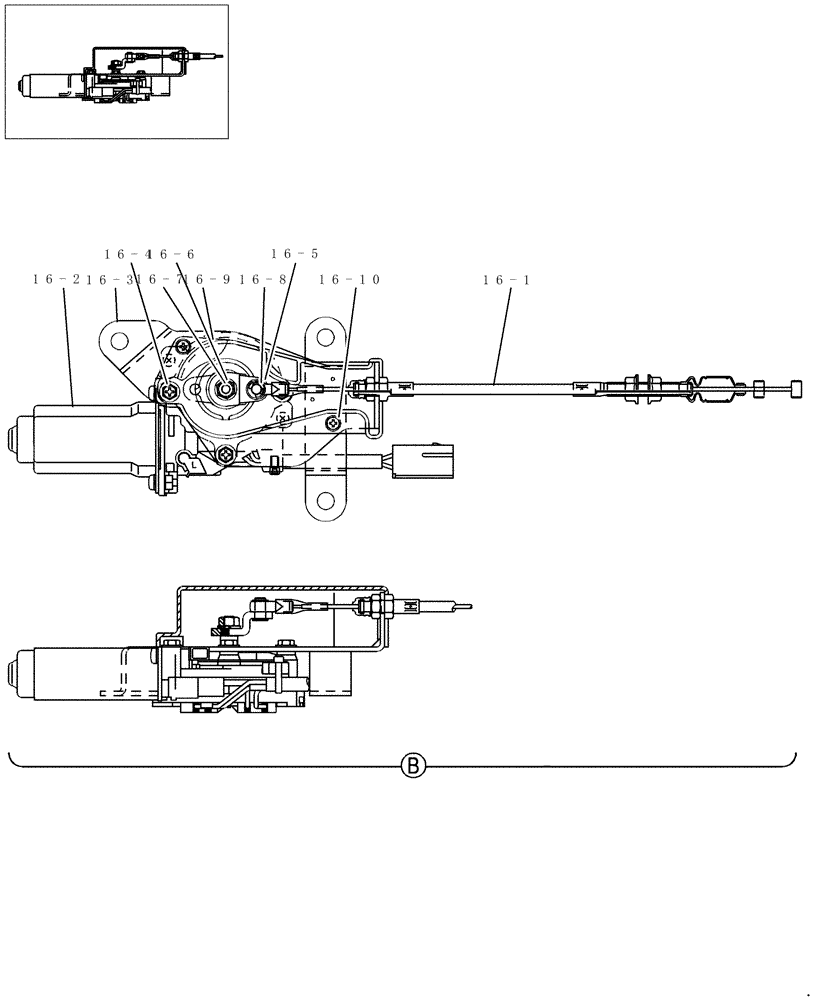

Запчасти Case CX36B (065-01[2]) - ENGINE ACCELERATOR CONTROLS (WITH DECEL) (10) - ENGINE
![Схема запчастей Case CX36B - (065-01[2]) - ENGINE ACCELERATOR CONTROLS (WITH DECEL) (10) - ENGINE](https://partsell.ru/storage/images/casece/1290044.png)
16-2
16-10
16-5
16-3
16-8
16-1
16-6
16-4
16-7
16-9
№
Артикул
Название
Примечание
Количество
PW20S00012F1
GOVERNOR
Incl. 16-1 - 16-10
1шт.
16-1
PW20S00012S001
CABLE
1шт.
16-2
PM20S00009S002
GOVERNOR
1шт.
16-3
PW20S00012S003
BRACKET
1шт.
16-4
PM20S00009S004
SCREW
3шт.
16-5
PM20S00009S005
LEVER ASSY.
1шт.
16-6
PM20S00009S006
LOCK WASHER
1шт.
16-7
PM20S00009S007
NUT
1шт.
16-8
PM20S00009S008
RING
1шт.
16-9
PM20S00009S009
COVER
1шт.
16-10
PM20S00009S010
SCREW
2шт.
Выбрано товаров: 11
