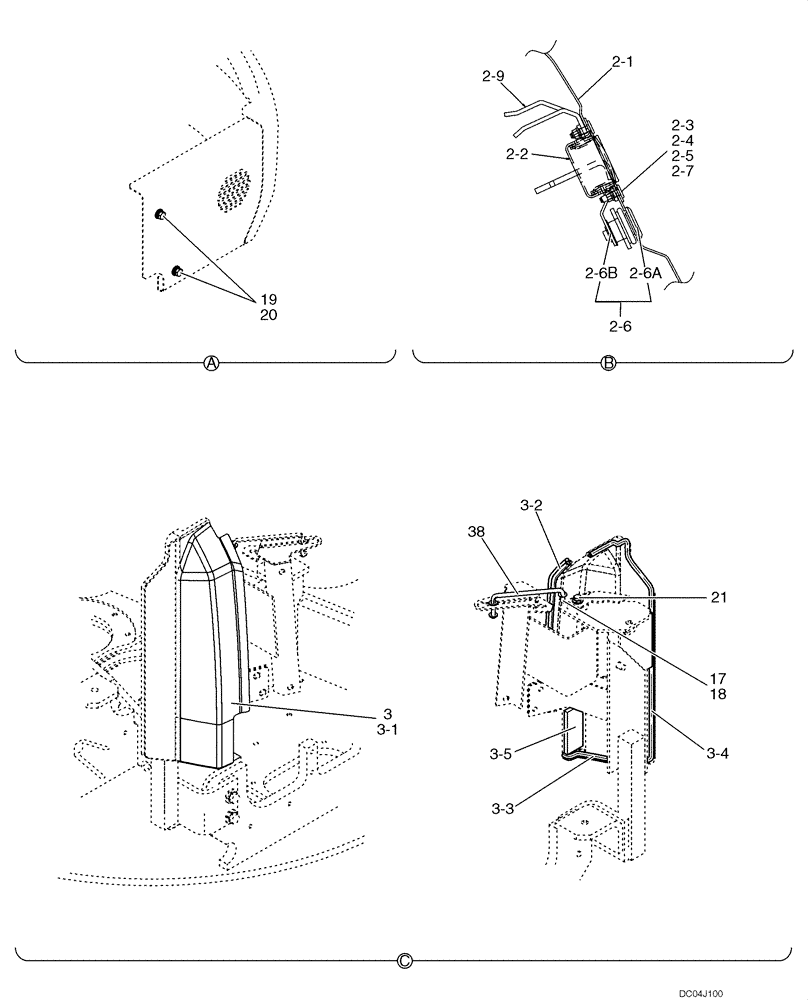

Запчасти Case CX36B (242-01[2-02]) - HOODS (CAB) (90) - PLATFORM, CAB, BODYWORK AND DECALS

PW22C00021F1%C

COVER

Incl. 2-2 - 2-9

1шт.

2-2

PW22C01067P1

LOCK

1шт.

2-3

PH22C01023P1

BOLT

4шт.

2-4

ZN18C05004

NUT

4шт.

2-5

ZW26X05000

LOCK WASHER

4шт.

2-6

PM21C01268F1

LOCK

Incl. 2-6A, 2-6B

1шт.

2-6a

YR22C01025P2

LOCK

1шт.

2-6b

PM21C01269P1

PLATE

1шт.

2-7

ZW16H05000

WASHER

4шт.

2-9

PW22C01160P2

BRACKET

1шт.

PW21C01695F1%C

COVER ASSY

Incl. 3-1 - 3-5

1шт.

3-1

PW21C01648P1%C

COVER

1шт.

3-2

YZ21C01094D8

WEATHERSTRIP

1шт.

3-3

PM21C01091DU

WEATHERSTRIP

1шт.

3-4

PM21C01152D9%C

WEATHERSTRIP

1шт.

3-5

PW21C01718D1

RUBBER

1шт.

17

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

1шт.

18

2419R9D2

COTTER PIN

OD 08mm x 27.7mm Long

1шт.

19

PA41C01005D3

BOLT

2шт.

20

YT21C01187P1

WASHER

2шт.

21

PA21C01133P1

BOLT

1шт.

38

PW22C01166P1

STAY

1шт.
