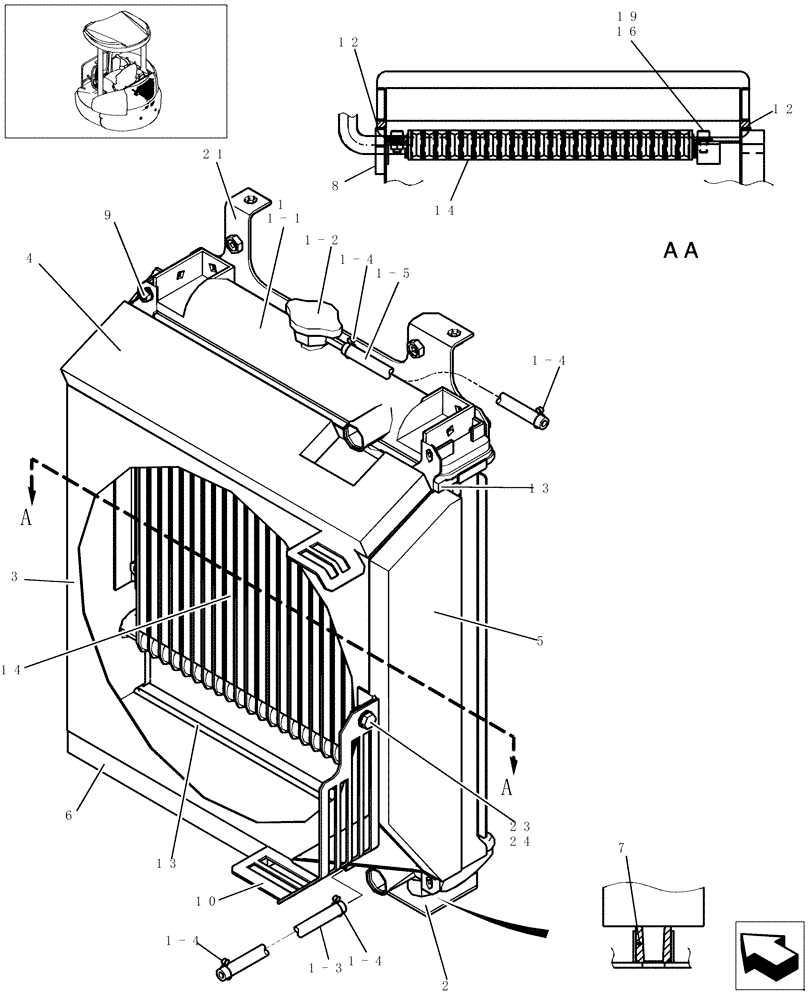

Запчасти Case CX36B (034-01[1-01]) - RADIATOR (10) - ENGINE

PW05P00028F1

RADIATOR

Incl. 1 - 24

1шт.

1

PW05P00027F1

RADIATOR

Incl. 1-1 - 1-5

1шт.

1-1

PW05P00027S001

RADIATOR

1шт.

1-2

PM05P00010S002

RADIATOR CAP

1шт.

1-3

PW05P00027S003

HOSE

1шт.

1-4

2452U267S8

CLIP

4шт.

1-5

PH05P00012S005

HOSE

1шт.

2

PW05P01090P1

BRACKET

1шт.

3

PW05P01134P2

SHROUD

1шт.

4

PW05P01131P1

FOAM INSULATION

1шт.

5

PW05P01132P1

FOAM INSULATION

1шт.

6

PW05P01133P1

FOAM INSULATION

1шт.

7

PH05P01144P1

RUBBER

2шт.

8

PW05P01128P1

RUBBER

2шт.

9

ZM61C06016

BOLT

6шт.

10

PW05P01130P1

GUARD

1шт.

12

PW05P01098P1

RUBBER

2шт.

13

PW05P01083P1

RUBBER

2шт.

14

PW53V00009P1

OIL COOLER

Hydraulic

1шт.

16

ZW16K08000

WASHER,8mm ID x 15.5mm OD x 1.6mm Thk

4шт.

19

ZS28C08016

SCREW,Hex Socket Head, M8 x 16mm

4шт.

21

PW05P01092P1

PLATE

1шт.

23

ZS18C08016

SCREW,Hex, M8 x 16mm

2шт.

24

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

2шт.
