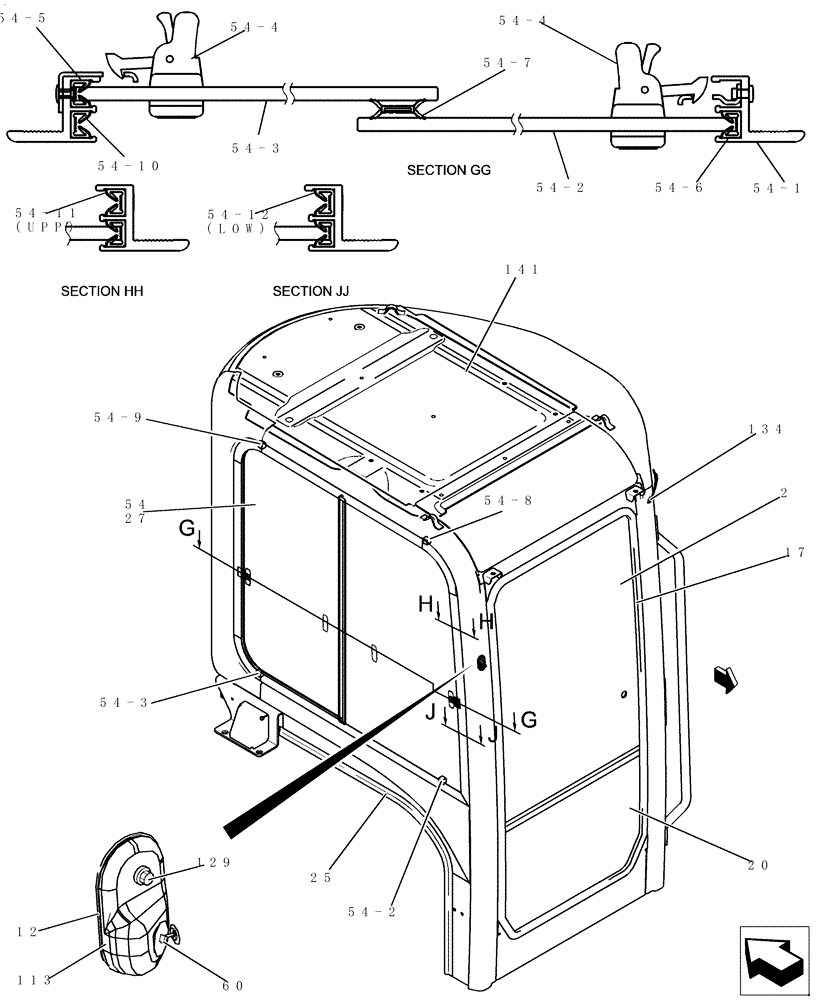

Запчасти Case CX36B (180-01[2-02]) - CAB - COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

PW02C00015F1%C

CAB

Incl. Figures 180-01(1-01) - 180-01(5-01)

1шт.

2

PW50C00002F1

WINDOW

Assembly - Inc. Frame See Figure 190-01

1шт.

12

PM02C01475P1

RUBBER

1шт.

17

PW02C01185D1

SEAL,3900mm L

1шт.

20

PW02C01117P1

GLASS

1шт.

25

PM02C01035D4

WEATHERSTRIP

, Serial Range: PX12-11001-PX12-11138

1шт.

25

PW02C01328D2

WEATHERSEAL STRIP

, Serial Range: PX12-11139-PX12-11277

1шт.

27

PM02C01172D3

SEAL,7mm W x 4.8mm H x 4000mm L

1шт.

54

PW02C01114F1

GLASS

Incl. 54-1 - 54-12

1шт.

54-1

PW02C01114S001

FRAME ASSY

1шт.

54-2

PW02C01224P1

GLASS

1шт.

54-3

PW02C01225P1

GLASS

1шт.

54-4

PW02C01114S004

LOCK ASSY

2шт.

54-5

PW02C01114S005

SEAL

1шт.

54-6

PW02C01114S006

SEAL

1шт.

54-7

PW02C01114S007

SEAL

1шт.

54-8

PW02C01114S008

STOP

2шт.

54-9

PW02C01114S009

STOP

2шт.

54-10

PW02C01114S010

SEAL

1шт.

54-11

PW02C01114S011

SEAL

1шт.

54-12

PW02C01114S012

SEAL

1шт.

60

PM02C01480P1

NOZZLE

1шт.

113

PM02C01474P1

BASE PLATE

1шт.

129

ZM46C05020

BOLT (STEP)

1шт.

134

PW02C01162P1

GROMMET

1шт.

141

PW02C01295P1

FOAM INSULATION

, Serial Range: PX12-11001-PX12-11098

1шт.

141

PW02C01295P2

FOAM INSULATION

, Start Serial: PX12-11099

1шт.

142

YT52C00006P1

MIRROR,210mm x 210mm

Not Illustrated

1шт.

143

PW52C01005P1

STAY

STAY; Not Illustrated

1шт.

144

ZM22C10025

BOLT

Not Illustrated

2шт.
