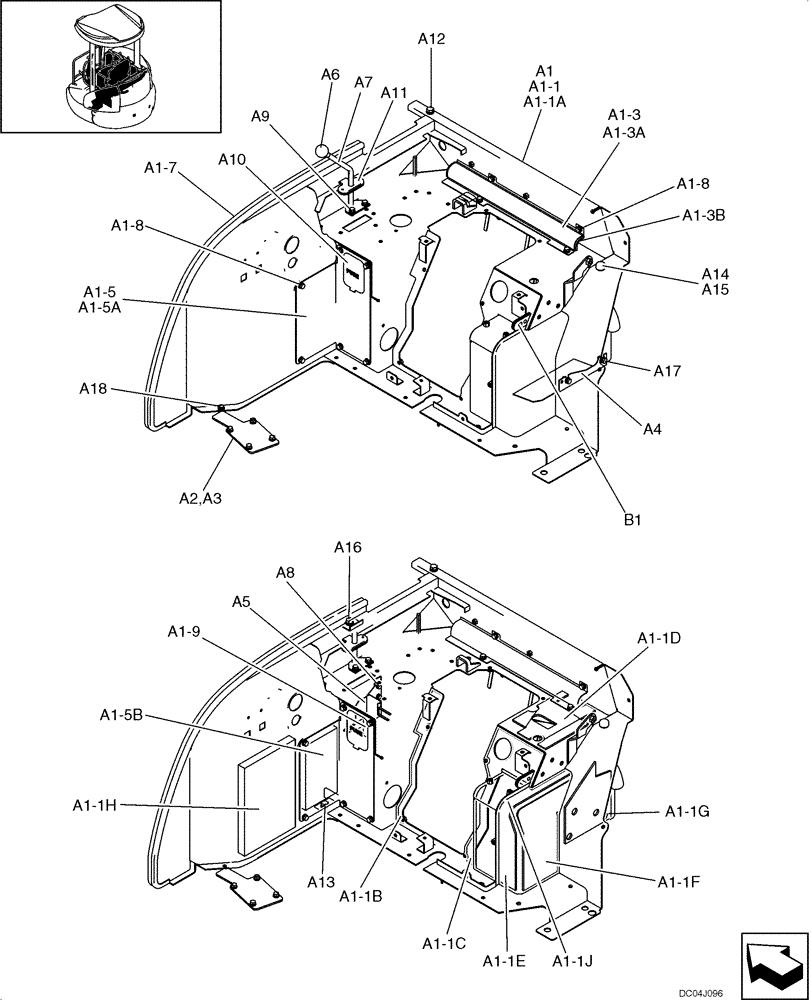

Запчасти Case CX36B (135-17[1]) - CONTROLS (CANOPY) (90) - PLATFORM, CAB, BODYWORK AND DECALS

a1

PW10M00006F1%C

STAND

Incl. A1-1 - A1-9

1шт.

a1-1

PW10M01195F1%C

STAND

Incl. A1-1A - A1-1J

1шт.

a1-1a

PW10M01223P1%C

STAND

1шт.

a1-1b

PW10M01202P1

FOAM INSULATION

1шт.

a1-1c

PW10M01103P1

FOAM INSULATION

1шт.

a1-1d

PW10M01224P1

FOAM INSULATION

1шт.

a1-1e

PW10M01180P1

FOAM INSULATION

1шт.

a1-1f

PH10M01045P1

FOAM INSULATION

1шт.

a1-1g

PW10M01207P1

FOAM INSULATION

1шт.

a1-1h

PW10M01203P1

FOAM INSULATION

1шт.

a1-1j

PW10M01181P1

FOAM INSULATION

1шт.

a1-3

PH03M01468F1%C

COVER ASSY

Incl. A1-3A, A1-3B

1шт.

a1-3a

PH03M01467P1%C

COVER

1шт.

a1-3b

PH03M01472P1

RUBBER

1шт.

a1-5

PW03M01586F1%C

COVER ASSY

Incl. A1-5A, A1-5B

1шт.

a1-5a

PH03M01432P2%C

COVER

1шт.

a1-5b

PW10M01177P1

FOAM INSULATION

1шт.

a1-7

PM21C01573D1

WEATHERSEAL STRIP

1шт.

a1-8

PA03M01093D2

BOLT

10шт.

a1-9

PM22C01020DR

TRIM PANEL

1шт.

a2

PM55M01023P1

PLATE

1шт.

a3

ZM22C08025

BOLT

4шт.

a4

PW03M01652P1%C

COVER

1шт.

a5

PH03M01435P1

COVER

1шт.

a6

PV03M01043P1

HANDLE GRIP

1шт.

a7

PW03M01623P1

LEVER

1шт.

a8

ZM61C06012

BOLT

2шт.

a9

ZM22C08016

BOLT

2шт.

a10

PW03M01543P1

GROMMET

1шт.

a11

PW03M01546P2

GROMMET

1шт.

a12

PM06C01045D3

BOLT

1шт.

a13

ZM22C10030

BOLT

1шт.

a14

ZM22C12030

BOLT

1шт.

a15

PW03M01557P1

CAP

1шт.

a16

ZM22C10025

BOLT

1шт.

a17

PA03M01093D2

BOLT

2шт.

a18

ZM22C08020

BOLT

1шт.

b1

PW03M01711P1

GROMMET

1шт.
