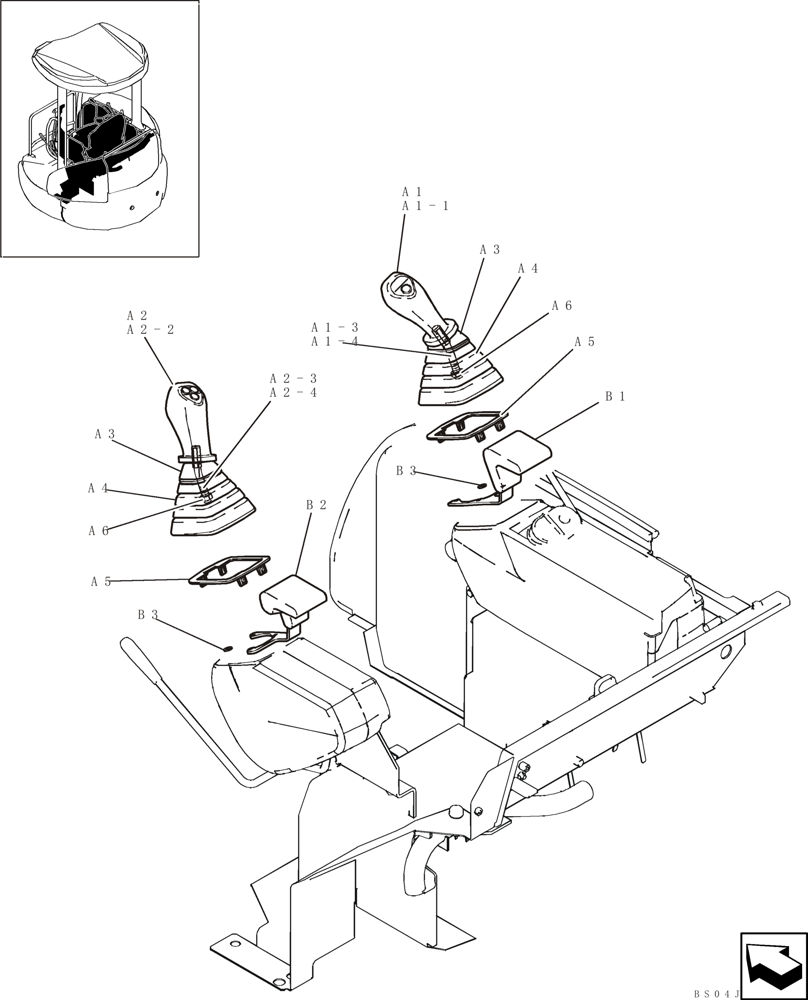

Запчасти Case CX36B (124-17[1]) - CONTROLS (90) - PLATFORM, CAB, BODYWORK AND DECALS

a1

YB03M01003F1

GRIP

Right Hand, Incl. A1-1 - A1-4

1шт.

a1-1

LF03M01005F1

HANDLE

(With 1 Switch)

1шт.

a1-3

YB03M01002P1

LEVER

1шт.

a1-4

ZP26D05028

PIN,5mm OD x 28mm L, Slotted

1шт.

a2

YB03M01003F2

GRIP

Left Hand, Incl. A2-2 - A2-4

1шт.

a2-2

LF03M01005F3

HANDLE

(With 3 Switches)

1шт.

a2-3

YB03M01002P1

LEVER

1шт.

a2-4

ZP26D05028

PIN,5mm OD x 28mm L, Slotted

1шт.

a3

LF03M01004P1

BOOT

2шт.

a4

LF03M01008P1

BELLOWS

2шт.

a5

YT03M01051P2

PLATE

2шт.

a6

ZN18C14011

NUT

2шт.

b1

PW03M01655P1

SUPPORT

1шт.

b2

PW03M01656P1

SUPPORT

1шт.

b3

PV03M01135P1

SPACER

2шт.
