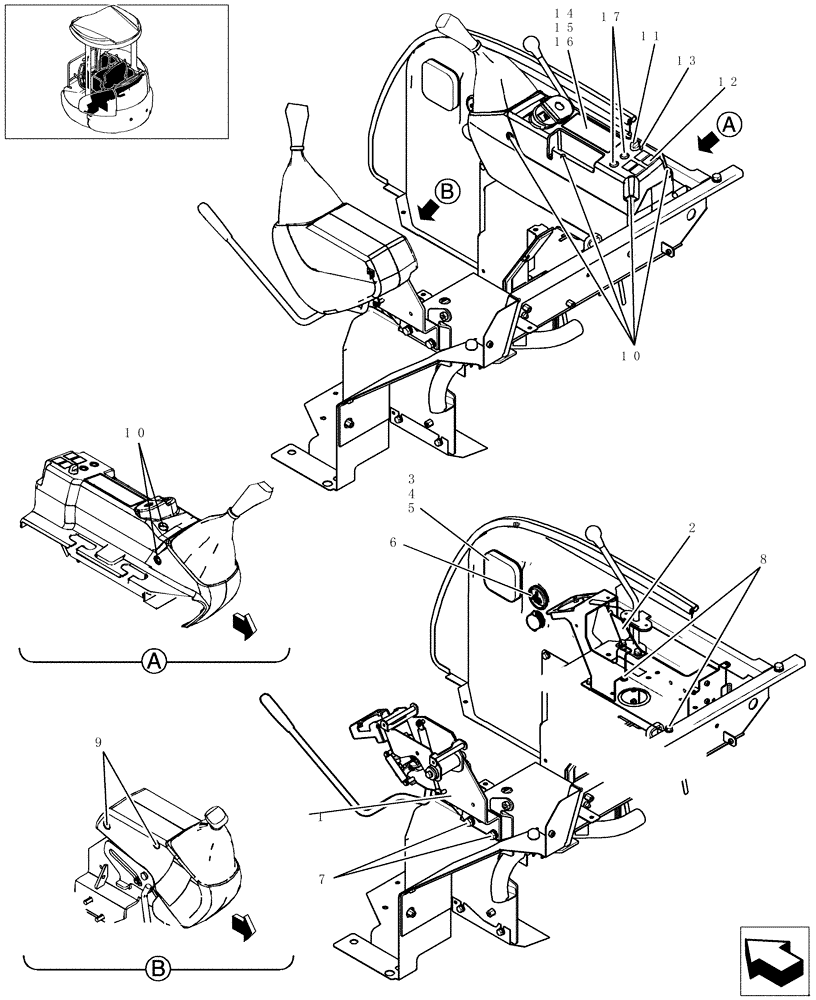

Запчасти Case CX36B (120-01[1-02]) - CONTROLS OPERATOR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

PW03M00061F1%C

CONTROL

See Figure 128-01

1шт.

2

PW03M01448P2%C

CONTROL

1шт.

3

YT17M01034P1

HOLDER

1шт.

4

YT02C01296P1

RIVET

2шт.

5

ZW16X06000

WASHER

2шт.

6

YT58S00006P1

HOURMETER

Hour

1шт.

7

ZM22C10030

BOLT

3шт.

8

ZM22C08020

BOLT

4шт.

9

PW03M01319P1

BOLT

2шт.

10

PW03M01717D1

BOLT,Torx, Truss HD, M5 x 0.8 x 16mm

6шт.

11

PV24E01001P2

SWITCH

1шт.

12

2414T4530

CAP

4шт.

13

PW17M01020P1

LABEL

1шт.

14

PH59S00005F1

GAUGE ASSY.

See Figure 265-01

1шт.

15

ZS32T40016

SCREW

4шт.

16

ZW16K04000

WASHER

4шт.

17

PW17M01021P1

CAP

2шт.
