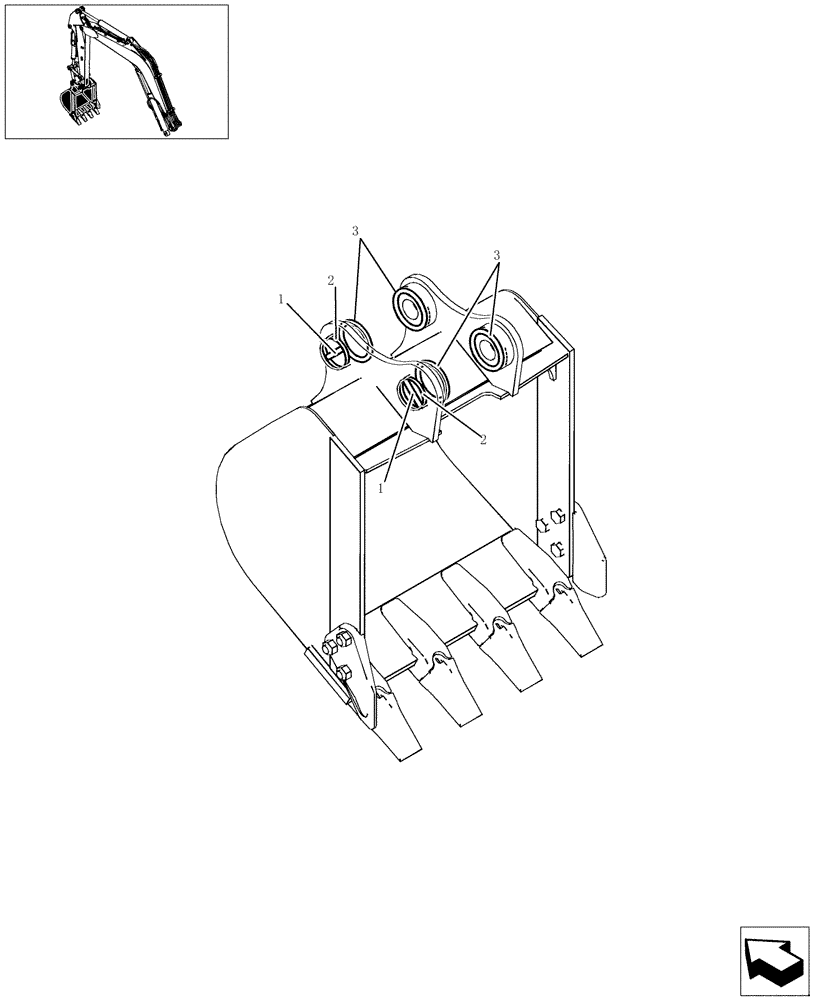

Запчасти Case CX36B (670-01[1-01]) - BUCKET INSTALLATION (84) - BOOMS, DIPPERS & BUCKETS

1

PW12B01250P2

PIN

OD 35 x 280mm Long -- (Secures with Roll Pin PX61B01091P1)

2шт.

PX61B01091P1

PIN,10mm OD x 58mm L

Roll (Used to secures Pin PW12B01250P2), Not Shown

2шт.

2

PX61B01032P1

RING

2шт.

3

PW61B01074P1

O-RING,69.22mm ID x 6.99mm Width

4шт.
