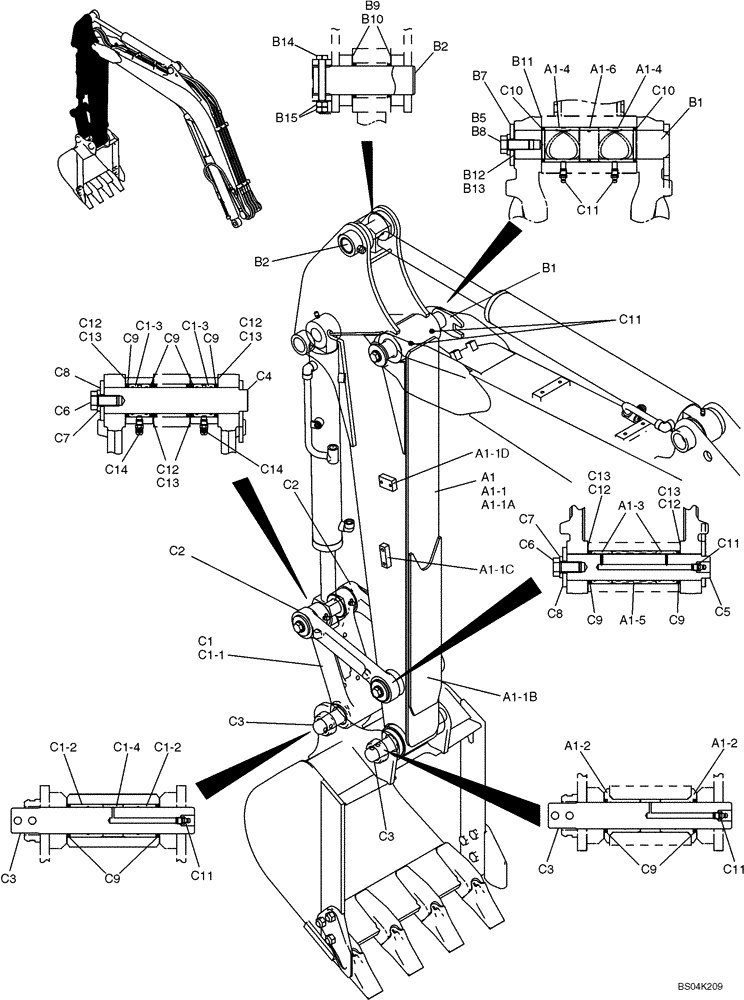

Запчасти Case CX36B (580-17[1]) - ARM ASSY (1.32M) (84) - BOOMS, DIPPERS & BUCKETS

a1

PX12B00093F1%C

ARM

Arm Assembly, Incl. A1-1 - A1-6

1шт.

a1-1

NSS

NOT SOLD SEPARAT

Arm, Incl. A1-1A - A1-1D

1шт.

a1-1a

NSS

NOT SOLD SEPARAT

Arm

1шт.

a1-1b

PW12B01277P1

PLATE

1шт.

a1-1c

PV12B01227P1

BLOCK

2шт.

a1-1d

PX12B01185P1

BLOCK

2шт.

a1-2

PW12B01237P2

BUSHING,40mm ID x 82mm OD x 55mm L

2шт.

a1-3

PW12B01209P2

BUSHING,45mm ID x 50mm OD x 31.5mm L

2шт.

a1-4

PX12B01177P2

BUSHING,45mm ID x 55mm OD x 55mm L

2шт.

a1-5

PW12B01208D1

COLLAR

1шт.

a1-6

PX12B01016P1

COLLAR

1шт.

b1

PW12B01255P1

PIN

1шт.

b2

PX12B01320P1

PIN,45mm OD x 160mm L

1шт.

b5

ZS18C16035

SCREW,Hex, M16 x 35mm

1шт.

b7

PW12B01242P1

WASHER

1шт.

b8

ZW16H16000

WASHER

1шт.

b9

YJ12B01097P1

SHIM,47mm ID x 70mm OD x 0.5mm Thk

1шт.

b10

PR02B01121D1

SHIM,47mm ID x 70mm OD x 0.9mm Thk

1шт.

b11

PW02B01239P1

SHIM,0.5mm Thk

1шт.

b12

PW12B01243D1

SHIM,0.5mm Thk

1шт.

b13

PW12B01243D2

SHIM,0.9mm Thk

2шт.

b14

HS18C10085G2

BOLT

1шт.

b15

ZN18C10008

NUT

2шт.

c1

PX12B01323F1%C

LINK ASSY.

Incl. C1-1 - C1-4

1шт.

c1-1

NSS

NOT SOLD SEPARAT

Link, Bucket

1шт.

c1-2

PX12B01151P1

BUSHING,40mm ID x 50mm OD x 50mm L

2шт.

c1-3

PX12B01246P1

BUSHING,40mm ID x 50mm OD x 32mm L

2шт.

c1-4

PW12B01208D2

COLLAR

1шт.

c2

PW12B01224P1%C

LINK

2шт.

c3

PW12B01250P2

PIN

OD 35 x 280mm Long -- (Secures with Roll Pin PX61B01091P1)

2шт.

PX61B01091P1

PIN,10mm OD x 58mm L

Roll (Used to secures Pin PW12B01250P2), Not Shown

2шт.

c4

PX12B01319P1

PIN

1шт.

c5

PW12B01311P1

PIN,40mm OD x 210mm L

1шт.

c6

ZS18C16030

SCREW,Hex, M16 x 30mm

2шт.

c7

ZW16H16000

WASHER

2шт.

c8

PW12B01216P1

WASHER

2шт.

c9

PN54D01001D3

SEAL,40mm ID x 50mm OD x 4mm Thk

10шт.

c10

2445R138D20

SEAL,45mm ID x 55mm OD x 4mm Thk

2шт.

c11

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

5шт.

c12

PR12B01113P1

SHIM,0.5mm Thk

4шт.

c13

PR02B01123D1

SHIM,0.9mm Thk

4шт.

c14

ZG91U02000

LUBE NIPPLE

2шт.
