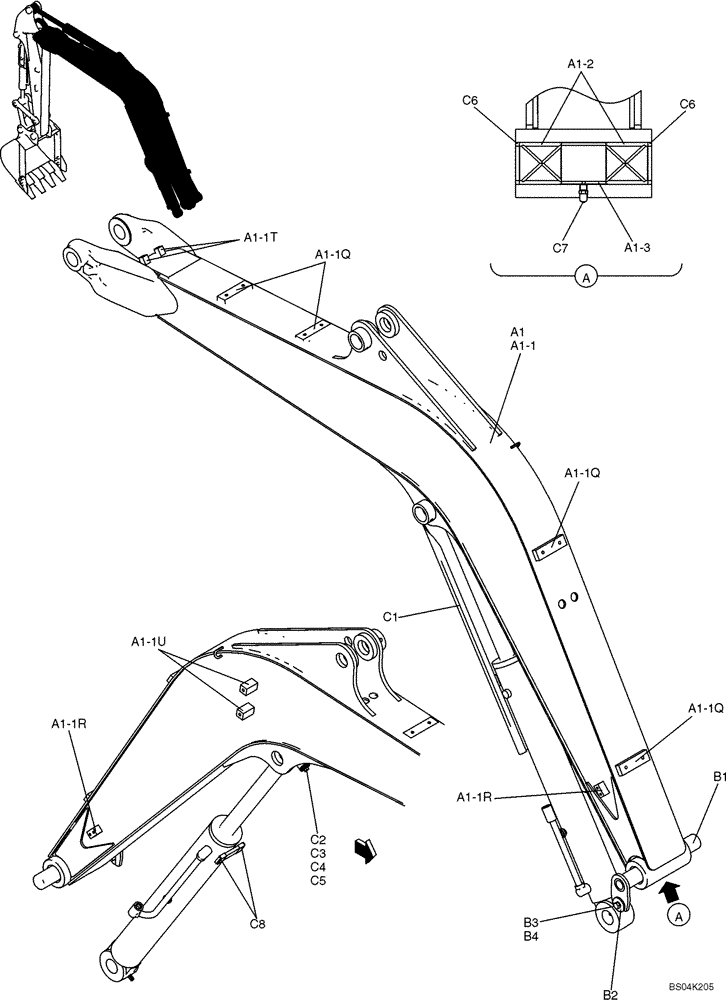

Запчасти Case CX36B (450-01[1-01]) - MONOBLOC BOOM (2.5M) (84) - BOOMS, DIPPERS & BUCKETS

a1

PX02B00076F1%C

BOOM

Incl. A1-1 - A1-3

1шт.

a1-1

NSS

NOT SOLD SEPARAT

Boom, Incl. A1-1Q - A1-1U

1шт.

a1-1q

PM02B01266P1

BLOCK

4шт.

a1-1r

PW02B01260P1

BLOCK

2шт.

a1-1t

PM02B01253P1

BLOCK

2шт.

a1-1u

R16T0184D5

BLOCK

2шт.

a1-2

PX02B01106P1

BUSHING,45mm ID x 55mm OD x 55mm L

2шт.

a1-3

PW02B01215P1

COLLAR

1шт.

b1

PX02B01238P1

PIN,Dia=45mm, L=301mm

1шт.

b2

2418T21137

WASHER

1шт.

b3

ZS18C10020

SCREW,Hex, M10 x 20mm

1шт.

b4

ZW26X10000

LOCK WASHER

1шт.

c1

PX02B01143P1%C

COVER

1шт.

c2

ZS18C08020

SCREW,Hex, M8 x 20mm

1шт.

c3

ZW26X08000

LOCK WASHER

1шт.

c4

2418T12753

WASHER

1шт.

c5

PN03M01009D1

WASHER

1шт.

c6

2445R138D20

SEAL,45mm ID x 55mm OD x 4mm Thk

2шт.

c7

ZG91V02000

LUBE NIPPLE,67 Degree x 1/8" PT

1шт.

c8

PH02B01004P1

TUBE

2шт.
