(265-01[1-01]) - ELECTRIC SYSTEM - PANEL INSTRUMENTS

Запчасти Case CX36B (265-01[1-01]) - ELECTRIC SYSTEM - PANEL INSTRUMENTS (55) - ELECTRICAL SYSTEMS

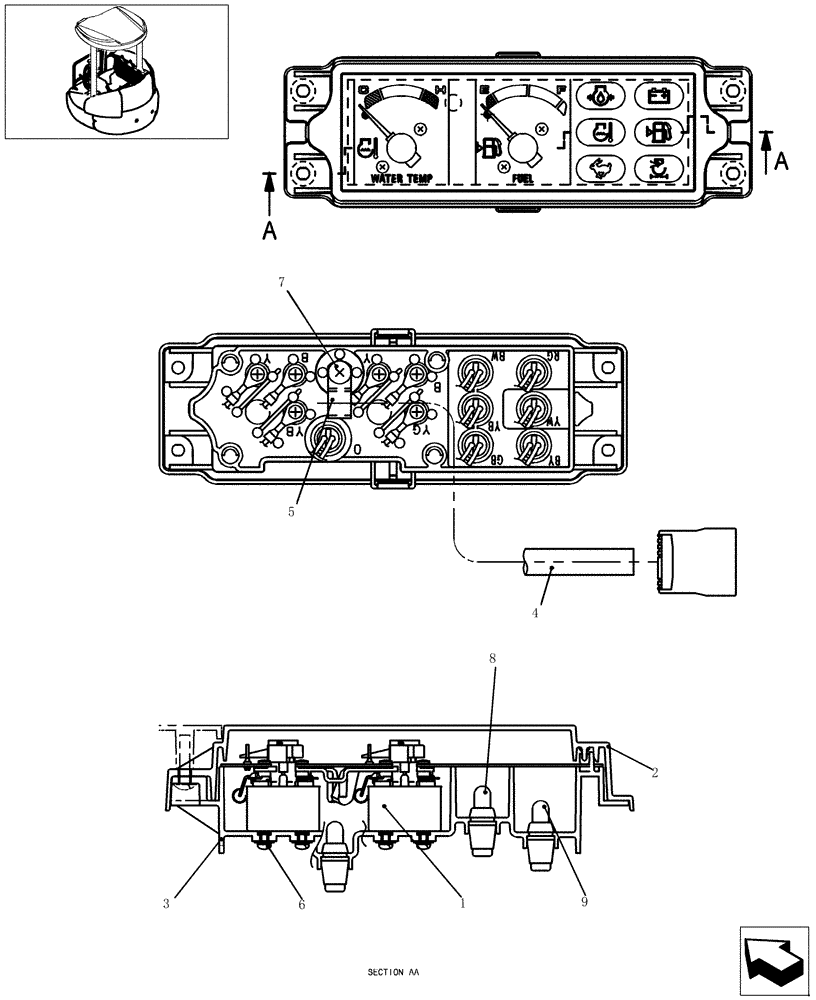

Схема запчастей Case CX36B - (265-01[1-01]) - ELECTRIC SYSTEM - PANEL INSTRUMENTS (55) - ELECTRICAL SYSTEMS
8
4
7
3
1
9
6
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PH59S00005F1

GAUGE ASSY.

Cluster, Incl. 1 - 9

1шт.

1

PH59S00005S001

GAUGE ASSY.

1шт.

2

PH59S00005S002

GLASS

1шт.

3

PH59S00005S003

CASE

1шт.

4

PH59S00005S004

HARNESS

1шт.

5

PH59S00005S005

CLIP

1шт.

6

PH59S00005S006

SCREW

6шт.

7

PH59S00005S007

SCREW

1шт.

8

PH59S00005S008

LAMP

6шт.

9

PH59S00005S009

LAMP

1шт.
