(282-01[1]) - CONDITIONING (WITH HEATER)

Запчасти Case CX36B (282-01[1]) - CONDITIONING (WITH HEATER) (50) - CAB CLIMATE CONTROL

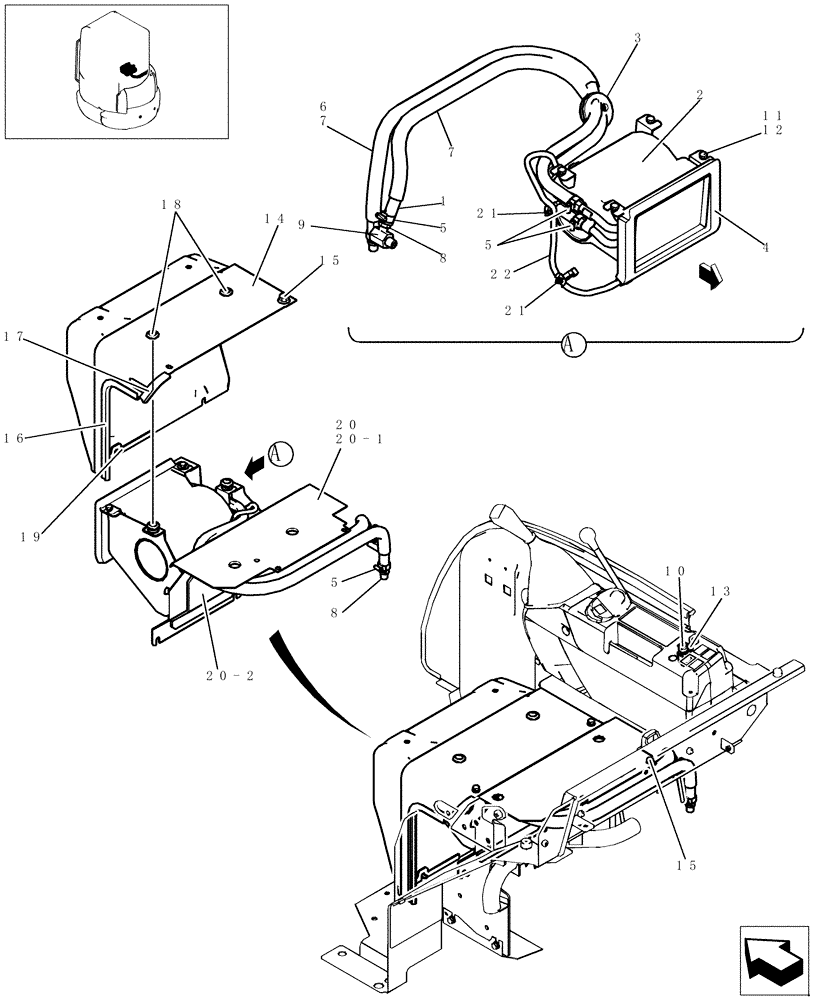

Схема запчастей Case CX36B - (282-01[1]) - CONDITIONING (WITH HEATER) (50) - CAB CLIMATE CONTROL
8
10
a
13
1
3
20
12
a
9
5
11
16
7
15
22
5
4
2
20-2
14
21
20-1
17
7
5
8
18
6
21
15
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

R18T0026D57

HOSE

1шт.

2

PM21M00005F1

HEATER ASSY.

Components are NSS, Includes Blower Motor

1шт.

3

PW03M01461P1

GROMMET

1шт.

4

PW21M01021P1

RUBBER

1шт.

5

ZC16X02000

CLIP

4шт.

6

R18T0026D59

HOSE

1шт.

7

YN20M01046DW

PROTECTIVE SLEEVE,22.10mm ID x 27.00mm OD x 710.00mm

2шт.

8

2444Z1630

FITTING

2шт.

9

PM21M01018P1

ELBOW

1шт.

10

PY50S00003P2

SWITCH

1шт.

11

PV01P01007P1

WASHER

4шт.

12

ZM11C08016

BOLT

4шт.

13

PW17M01019P1

LABEL

1шт.

14

PW03M01492P2%C

COVER

1шт.

15

PA03M01093D2

BOLT

10шт.

16

YN21C01712D5

WEATHERSTRIP

1шт.

17

PM22C01013DE

WEATHERSEAL STRIP

1шт.

18

2420R429D4

GROMMET

2шт.

19

PW03M01539P1

RUBBER

1шт.

20

PW10M01146F1

COVER ASSY

Incl. 20-1, 20-2

1шт.

20-1

PW10M01144P3

COVER

1шт.

20-2

PW10M01145P2

FOAM INSULATION

1шт.

21

YN03E01001D5

CLIP

2шт.

22

PW13E01068P1

HARNESS

1шт.
