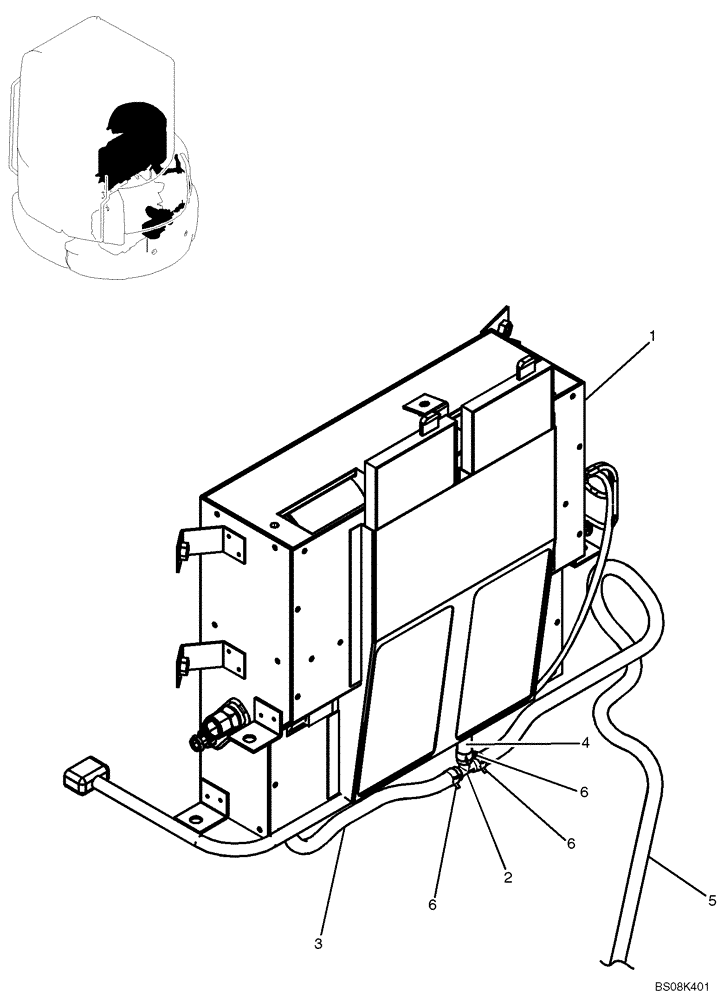

Запчасти Case CX36B (05-030[00]) - COOLER ASSY (PH20M00016F1) (50) - CAB CLIMATE CONTROL

COOLER ASSY, PH20M00016F1

1шт.

1

PH20M00019F1

COOLER

COOLER, Assy; See Figure 05-031 For Service Breakdown

1шт.

2

YR20M01136P1

TEE

1шт.

3

PH20M01115D5

HOSE

1шт.

4

PH20M01115D6

HOSE

1шт.

5

PH20M01115D4

HOSE

1шт.

6

24100U1176S5

CLAMP

3шт.
