(05-027[00]) - COOLER ASSY (PW20M00022F1)

Запчасти Case CX36B (05-027[00]) - COOLER ASSY (PW20M00022F1) (50) - CAB CLIMATE CONTROL

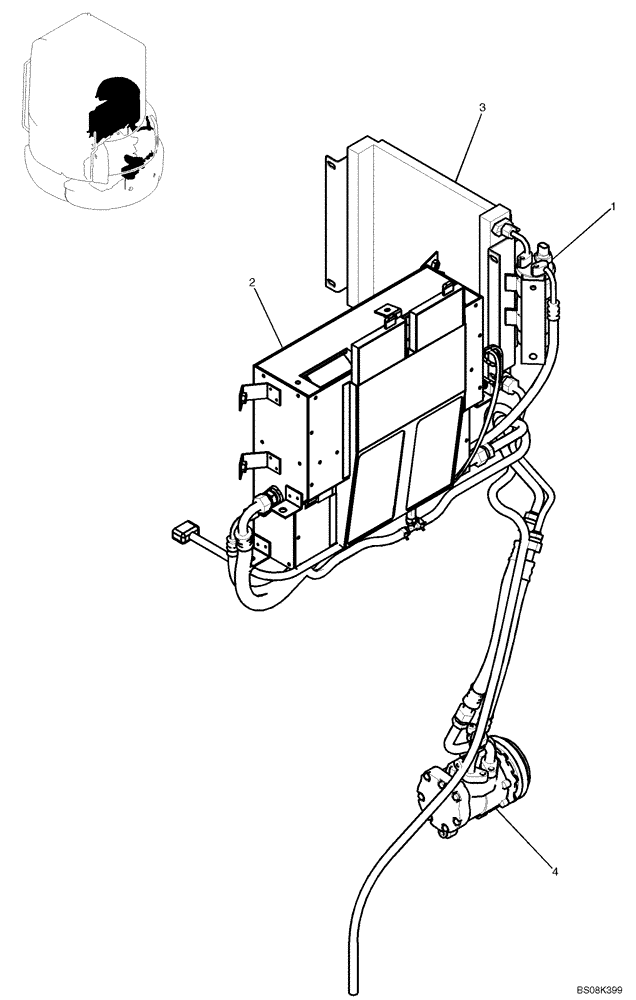

Схема запчастей Case CX36B - (05-027[00]) - COOLER ASSY (PW20M00022F1) (50) - CAB CLIMATE CONTROL
3
1
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

COOLER ASSY, PW20M00022F1

1шт.

1

NSS

NOT SOLD SEPARAT

DRIER ASSY, Air PW96V00005F1; See Figure 05-029 For Service Breakdown

1шт.

2

PH20M00016F1

COOLER

Assy; See Figure 05-030 For Service Breakdown

1шт.

3

PH20M01108F1

CONDENSER

Assy

1шт.

3-1

PH20M01108S009

ELECTRIC MOTOR

Not Illustrated – Condenser Fan

1шт.

4

PH91V00004F1

AIRCOND. COMPRESSOR

Assy

1шт.

Выбрано товаров: 6
