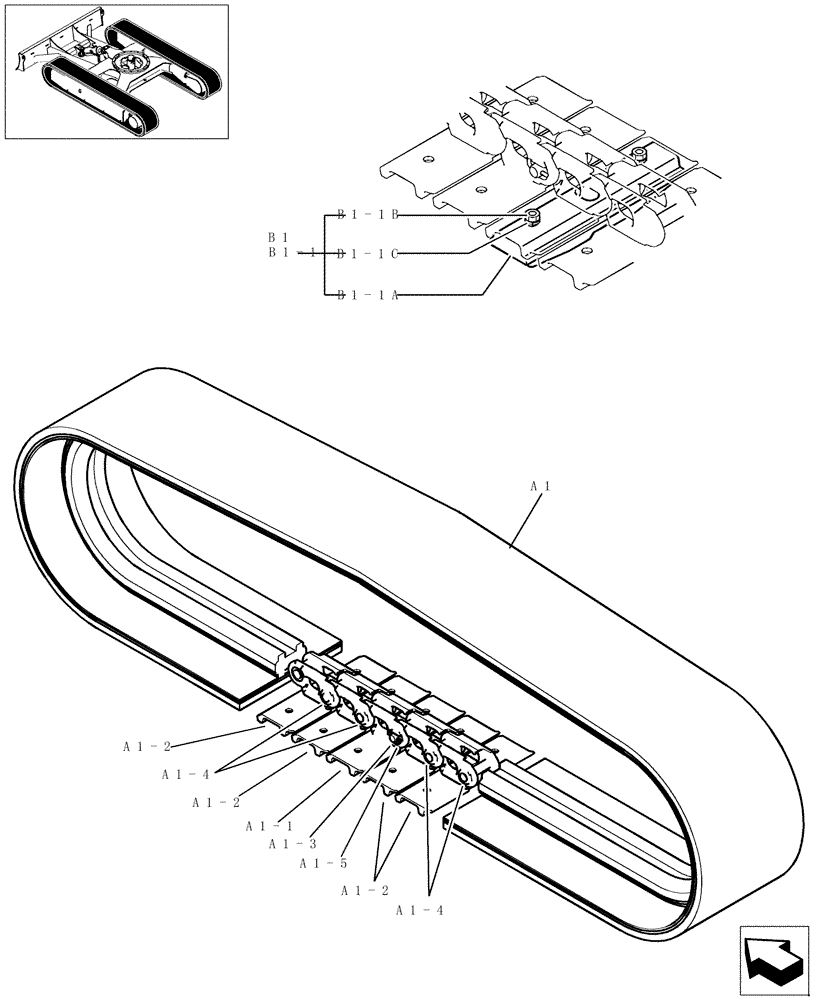

Запчасти Case CX36B (380-01[1-01]) - SHOE ASSY (48) - TRACKS & TRACK SUSPENSION

a1

PX60D00012F1

SHOE (ASSY)

300 W, Incl. A1-1 - A1-5

2шт.

a1-1

PX60D00013F1

SHOE (ASSY)

1шт.

a1-2

PX60D00014F1

TRACK SHOE

44шт.

a1-3

PM62D01006P1

PIN,18.93mm OD x 97.5mm L

1шт.

a1-4

PM62D01005P1

PIN,19.2mm OD x 92.5mm L

44шт.

a1-5

PM62D01008P1

PIN,5mm OD

1шт.

b1

PW60D00021F2

SHOE (ASSY)

Incl. B1-1

2шт.

b1-1

PW62D00009F1

SHOE

Incl. B1-1A - B1-1C

45шт.

b1-1a

PW62D00008P1

SHOE

1шт.

b1-1b

ZN45C12022

NUT

2шт.

b1-1c

ZW26X12000

LOCK WASHER

2шт.
