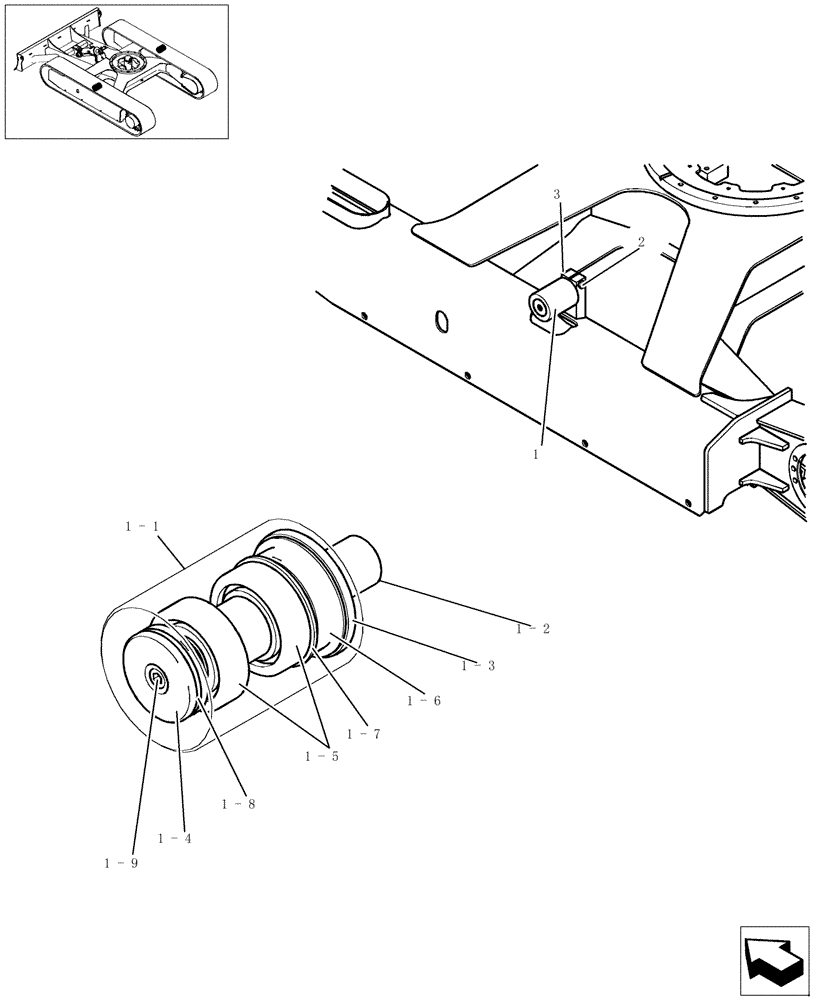

Запчасти Case CX36B (374-01[1-01]) - TRACK ROLLER - COMPONENTS (48) - TRACKS & TRACK SUSPENSION

1

PW64D01017F1

ROLLER ASSY.

Incl. 1-1 - 1-9

2шт.

1-1

PW64D01018P1

ROLLER

1шт.

1-2

PW64D01019P1

SHAFT

1шт.

1-3

PV64D01001P1

COVER

1шт.

1-4

PW64D01020P1

COVER

1шт.

1-5

PU64D01004P1

BEARING

2шт.

1-6

2445Z1503

SEAL

1шт.

1-7

ZR26X05200

RING

1шт.

1-8

ZD11G04000

O-RING,39.40mm ID x 45.60mm OD x 3.10mm

1шт.

1-9

PV52D01007P1

PLUG

1шт.

2

ZS18C10060

SCREW,Hex, M10 x 60mm

2шт.

3

ZN18C10008

NUT

2шт.
