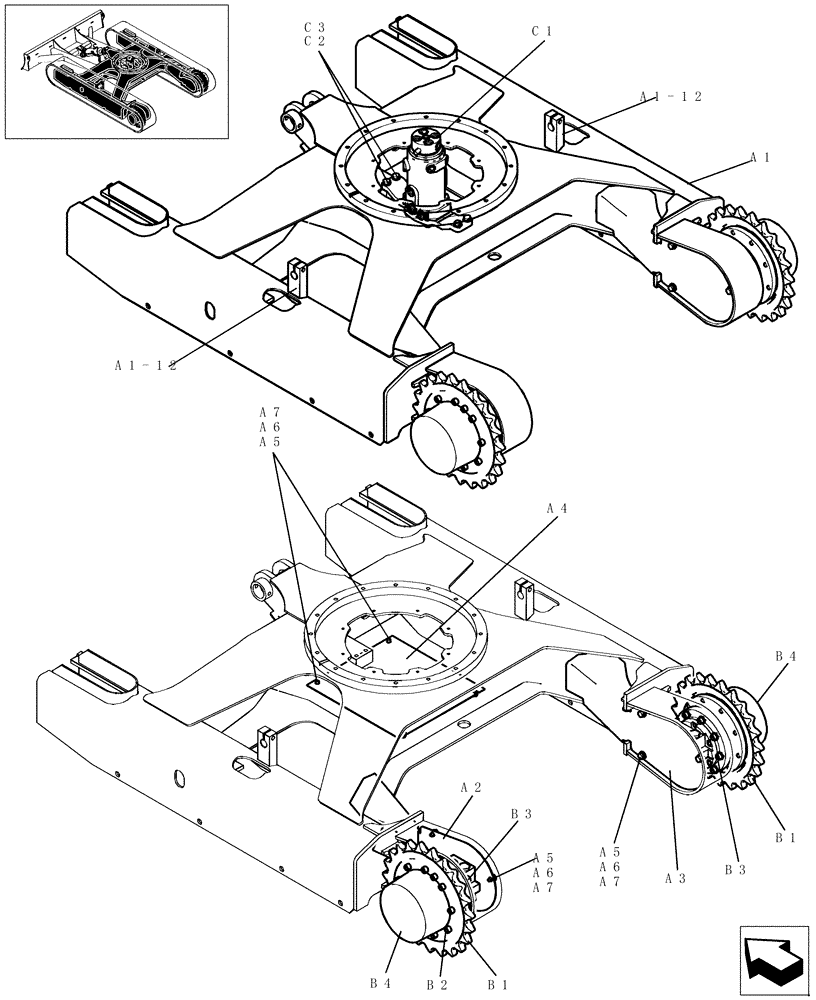

Запчасти Case CX36B (330-01[1-01]) - LOWER FRAME (39) - FRAMES AND BALLASTING

a1

NSS

NOT SOLD SEPARAT

FRAME, Low, Incl. A1-12

1шт.

a1-12

PX07F01059P1

SUPPORT

1шт.

a2

PX01F01027P1%C

COVER

1шт.

a3

PX01F01028P1%C

COVER

1шт.

a4

PM01F01008P1%C

COVER

1шт.

a5

ZS18C10016

SCREW,Hex, M10 x 16mm

10шт.

a6

ZW26X10000

LOCK WASHER

10шт.

a7

ZW16H10000

WASHER

10шт.

b1

PX51D01001P1

SPROCKET

2шт.

b2

ZS28C12040

SCREW,Hex Socket Head, M12 x 40mm

20шт.

b3

PV17M01004P1

SCREW

20шт.

b4

PX15V00025F1

HYDRAULIC MOTOR

See Figure HC370-01

2шт.

c2

ZS18C12040

SCREW,Hex, M12 x 40mm

4шт.

c3

ZW16X12000

WASHER

4шт.

c4

PW55V00015F2

JOINT ASSY.

See Figure HC930-01

1шт.
