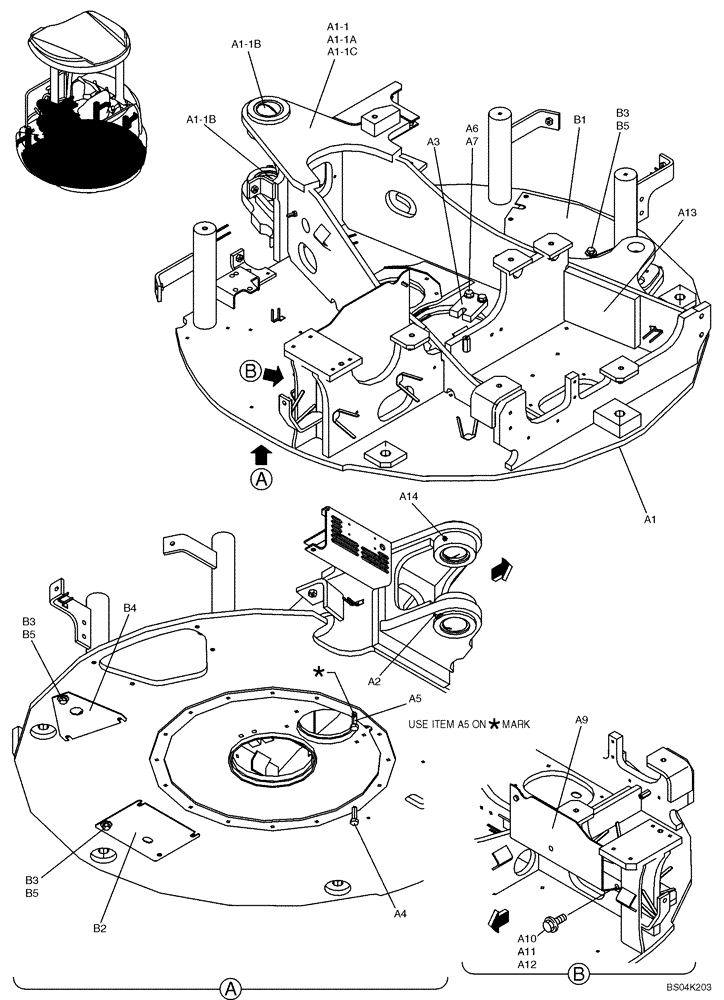

Запчасти Case CX36B (010-17[1]) - UPPER FRAME (39) - FRAMES AND BALLASTING

a1

PW52F00035P1

FRAME

Upper, Incl. A1-1

1шт.

a1-1

PW52F00032P1

FRAME

Incl. A1-1A - A1-1C

1шт.

a1-1a

PW52F01334F1

BRACKET

1шт.

a1-1b

PW52F01230P1

BUSHING,65mm ID x 80mm OD x 65mm L

2шт.

a1-1c

PW52F01335P1

BRACKET

1шт.

a2

ZG91U02000

LUBE NIPPLE

1шт.

a3

PW52F01260P1

STOP

1шт.

a4

ZS18C12070

SCREW,Hex, M12 x 70mm

15шт.

a5

HS58C12070G2

BOLT

1шт.

a6

ZS18C12040

SCREW,Hex, M12 x 40mm

2шт.

a7

ZW16H12000

WASHER

2шт.

a9

PW52F01330P1

PLATE

1шт.

a10

ZW26X10000

LOCK WASHER

2шт.

a11

ZW16X10000

WASHER

2шт.

a12

ZS18C10025

SCREW,Hex, M10 x 25mm

2шт.

a13

PW52F01309P1

FOAM INSULATION

1шт.

a14

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

1шт.

b1

PW24C01035P1%C

COVER

1шт.

b2

PW24C01038P1%C

COVER

1шт.

b3

ZM12C10025

BOLT

11шт.

b4

PM24C01016P1

COVER

1шт.

b5

2418T12346

WASHER

ID 11 x OD 30 x Th 3.2mm

11шт.
