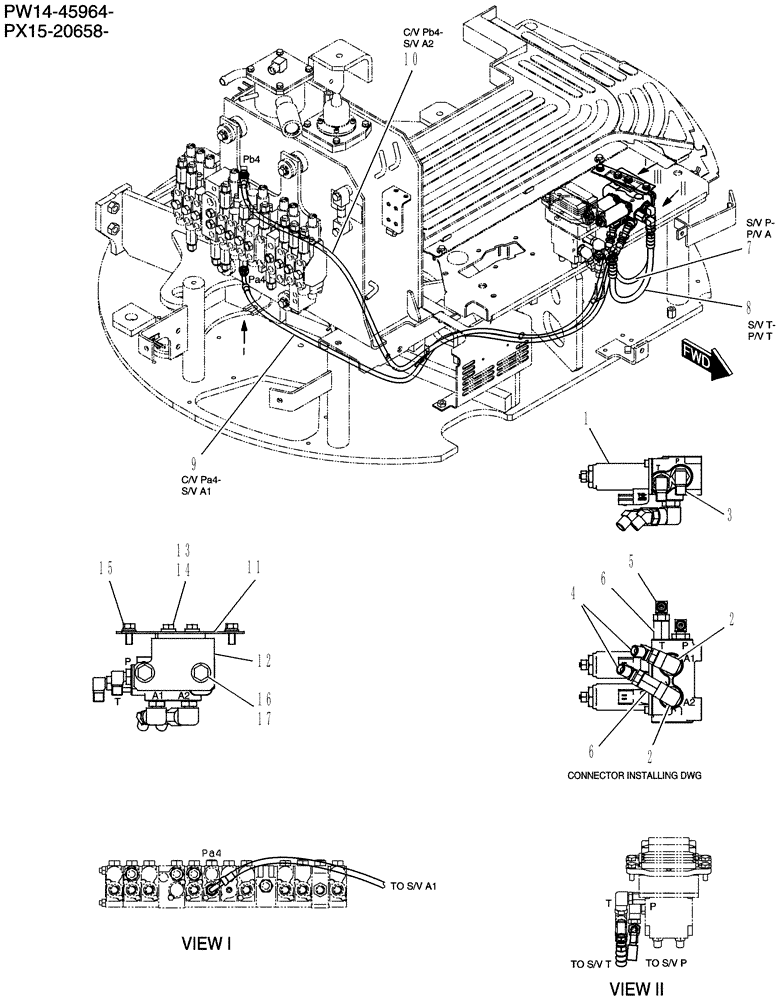

Запчасти Case CX36B (161-60[1]) - CONTROL LINES, REMOTE (05) - SUPERSTRUCTURE

PW64H00087F1

Control Lines, Valve

1шт.

1

PW35V00002F1

SOLENOID VALVE

Valve Assy

1шт.

See(C.P.M)

1шт.

2

2444Z2894

90 ELBOW

Elbow

2шт.

3

HH35S04004G2

90 ELBOW

1шт.

4

HH45S04004G1

45 ELBOW

2шт.

5

HH35S04004G1

90 ELBOW

1шт.

6

2444Z2525

HYD CONNECTOR

2шт.

7

HX34L04034DX

HOSE,6.3mm ID x 340mm L

1шт.

8

HX22L04038DX

HOSE

1шт.

9

HX33L03145DX

HOSE,4.8mm ID x 1450mm L

1шт.

10

HX23L03175DX

HOSE

1шт.

11

PW64H01089P1

SUPPORT

1шт.

12

PW64H01103P1

BRACKET, SUPPORTING

1шт.

13

ZS18C08025

SCREW,Hex, M8 x 25mm

Cap

2шт.

14

ZW16H08000

WASHER

2шт.

15

ZM22C08020

BOLT

Sems

2шт.

16

ZS18C10020

SCREW,Hex, M10 x 20mm

Cap

2шт.

17

ZW16H10000

WASHER

2шт.
