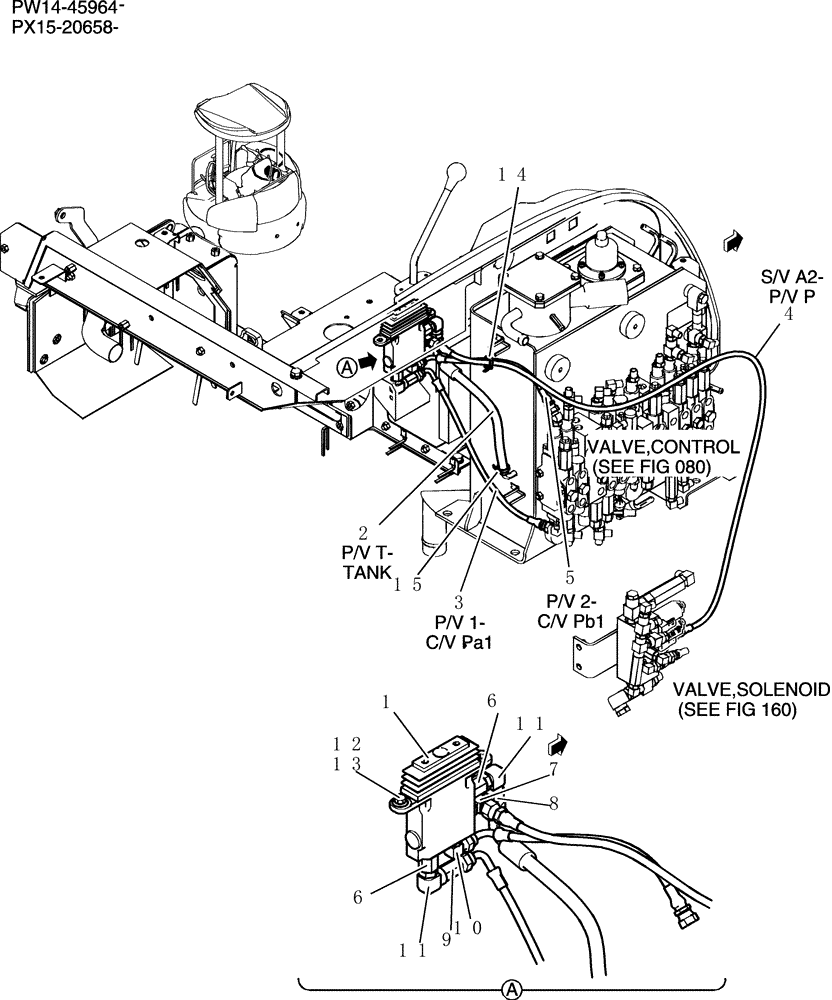

Запчасти Case CX36B (150-72[1]) - CONTROL LINES, REMOTE (DOZER) (05) - SUPERSTRUCTURE

PW68H00043F1

Control Lines, Remote (dozer)

1шт.

1

PB30V00002F2

PILOT VALVE

Assy

1шт.

See(C.P.M)

1шт.

2

PW68H01024D3

HOSE

1шт.

3

HX33L03042DX

HOSE,4.8mm ID x 420mm L

1шт.

4

HX24L04180DX

HOSE ASSY.

1шт.

5

HX33L03038DX

HOSE

1шт.

6

2444Z2525

HYD CONNECTOR

2шт.

7

HH35S04004G2

90 ELBOW

Connector (with Filter)

1шт.

8

HH25S06004G3

HYD CONNECTOR

1шт.

9

PU64H01002P1

HYD CONNECTOR

1шт.

10

HH35S04004G1

90 ELBOW

1шт.

11

2444Z2894

90 ELBOW

2шт.

12

ZS18C08020

SCREW,Hex, M8 x 20mm

2шт.

13

ZW16H08000

WASHER

2шт.

14

PY01P01043D6

CABLE TIE,4.80mm W x 383mm L

1шт.

15

ZC16X01800

CLIP

1шт.
