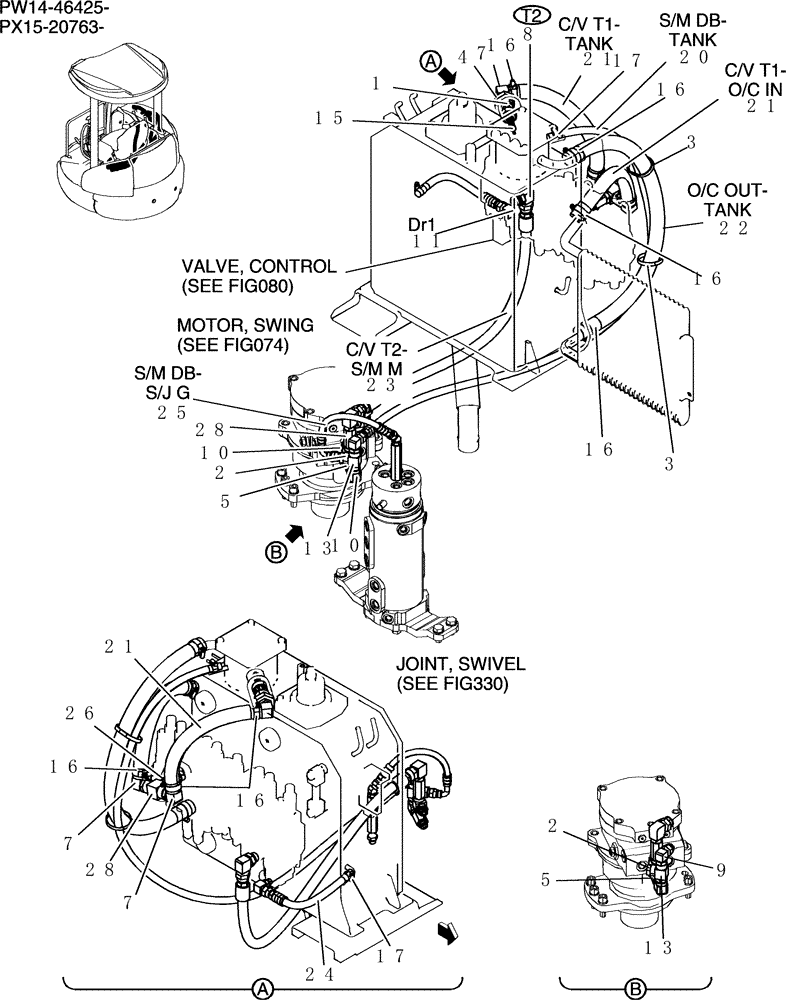

Запчасти Case CX36B (110-72[1]) - HYDRAULIC LINES, RETURN (ANGLE DOZER) (05) - SUPERSTRUCTURE

PW32H00014F1

Hyd Lines, Return

1шт.

1

HH25R16008G1

HYD CONNECTOR

1шт.

2

HH25S04006G1

90 ELBOW

1шт.

3

PY01P01043D8

CABLE TIE,102mm L

2шт.

4

HH35S08006G1

90 ELBOW

1шт.

5

2444P1098P1

Connector

1шт.

7

PW32H01028P1

ELBOW

3шт.

8

HH35S08008G1

90 ELBOW

1шт.

9

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

1шт.

10

2444Z3155

90 ELBOW,PF 3/8" Fem x PF 3/8" Male

2шт.

11

HH35S06004G1

90 ELBOW

1шт.

13

HH55Q06006G1

TEE

1шт.

15

PW21V00003F1

VALVE

Assy

1шт.

16

ZC16X02800

CLIP

6шт.

17

ZC16X01800

CLIP

2шт.

20

PW68H01023D4

HOSE,9.5mm ID x 1450mm L

1шт.

21

PW32H01026D4

HOSE,19mm ID x 350mm L

2шт.

22

PW32H01026D3

HOSE,19mm ID x 790mm L

1шт.

23

HX22L08090DX

HOSE

1шт.

24

PW68H01023D1

HOSE,9.5mm ID x 250mm L

1шт.

25

HX32L04028DX

HOSE

1шт.

26

2444Z3713

HYD CONNECTOR

1шт.

27

PY30H01008P1

TEE,PF 1/2" x PF 1/2"

1шт.

28

2444Z3711

HYD CONNECTOR

1шт.
