(100-72[2]) - HYDRAULIC LINES, UPPER (ANGLE DOZER)

Запчасти Case CX36B (100-72[2]) - HYDRAULIC LINES, UPPER (ANGLE DOZER) (05) - SUPERSTRUCTURE

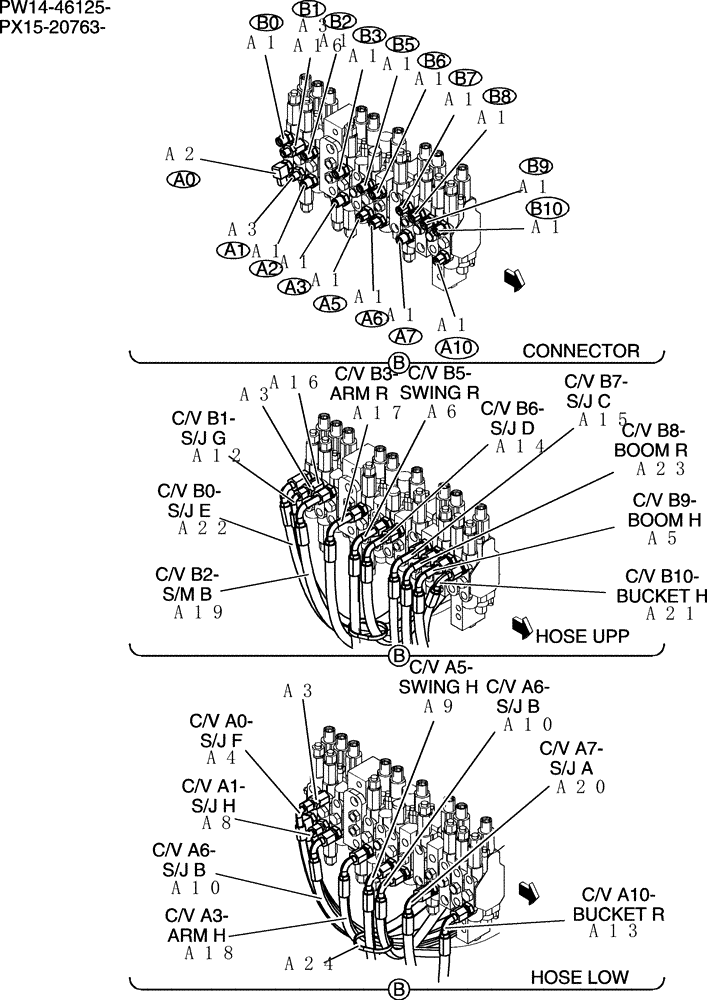

Схема запчастей Case CX36B - (100-72[2]) - HYDRAULIC LINES, UPPER (ANGLE DOZER) (05) - SUPERSTRUCTURE
a3
a16
a1
a3
a1
a1
a1
a1
a14
a19
a10
a12
a1
a23
a16
a17
a13
a1
a22
a2
a1
a1
a18
a9
a10
a6
a5
a1
a3
a4
a24
a20
a1
a1
a1
a1
a21
a3
a1
a8
a15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PW03H00039F1

Hyd Lines, Upp

1шт.

a1

HH25S06006G1

HYD CONNECTOR

15шт.

a2

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

3шт.

a3

HH25S04006G1

90 ELBOW

2шт.

a4

HX25L06090DY

HOSE

1шт.

a5

PW03H01128D2

HOSE

Hose

1шт.

a6

PW03H01101D6

HOSE,9.5mm ID x 740mm L

1шт.

a7

HH25R06006G5

CONNECTION

1шт.

a8

HX35L04086DX

HOSE

1шт.

a9

HX35L06054DY

HOSE,9.5mm ID x 540mm L

1шт.

a10

HX35L06094DY

HOSE,9.5mm ID x 940mm L

2шт.

a11

YN64H01068D6

RUBBER

1шт.

a12

HX35L04096DX

HOSE

1шт.

a13

PW03H01127D2

HOSE,9.5mm ID x 2120mm L

1шт.

a14

PW03H01101D3

HOSE,9.5mm ID x 1000mm L

1шт.

a15

PW03H01101D4

HOSE,9.5mm ID x 960mm L

1шт.

a16

2444Z2891

HYD CONNECTOR

1шт.

a17

PW03H01128D1

HOSE

Hose

1шт.

a18

PW03H01127D1

HOSE

Hose

1шт.

a19

PW03H01101D7

HOSE,9.5mm ID x 1100mm L

1шт.

a20

HX35L06090DY

HOSE,9.5mm ID x 900mm L

1шт.

a21

PW03H01127D3

HOSE

Hose

1шт.

a22

HX35L06105DY

HOSE,9.5mm ID x 1050mm L

1шт.

a23

PW03H01128D3

HOSE

Hose

1шт.

a24

PY01P01043D8

CABLE TIE,102mm L

1шт.

PW19H00026F1

Hyd Lines, Swivel

1шт.

b1

ZE72X04000

PLUG

1шт.

b2

HH35S04006G1

90 ELBOW,90 Degree, 1/4" PF x 3/8" PF x 60mm L

2шт.

b3

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

3шт.

b4

HH45S04004G1

45 ELBOW

1шт.

b5

HH45S06006G1

45 ELBOW

3шт.

b6

YT42H01128P1

90 ELBOW

2шт.

b7

2444T2611

HYD CONNECTOR

1шт.

b8

2444Z2891

HYD CONNECTOR

2шт.

b9

2444Z3711

HYD CONNECTOR

2шт.
