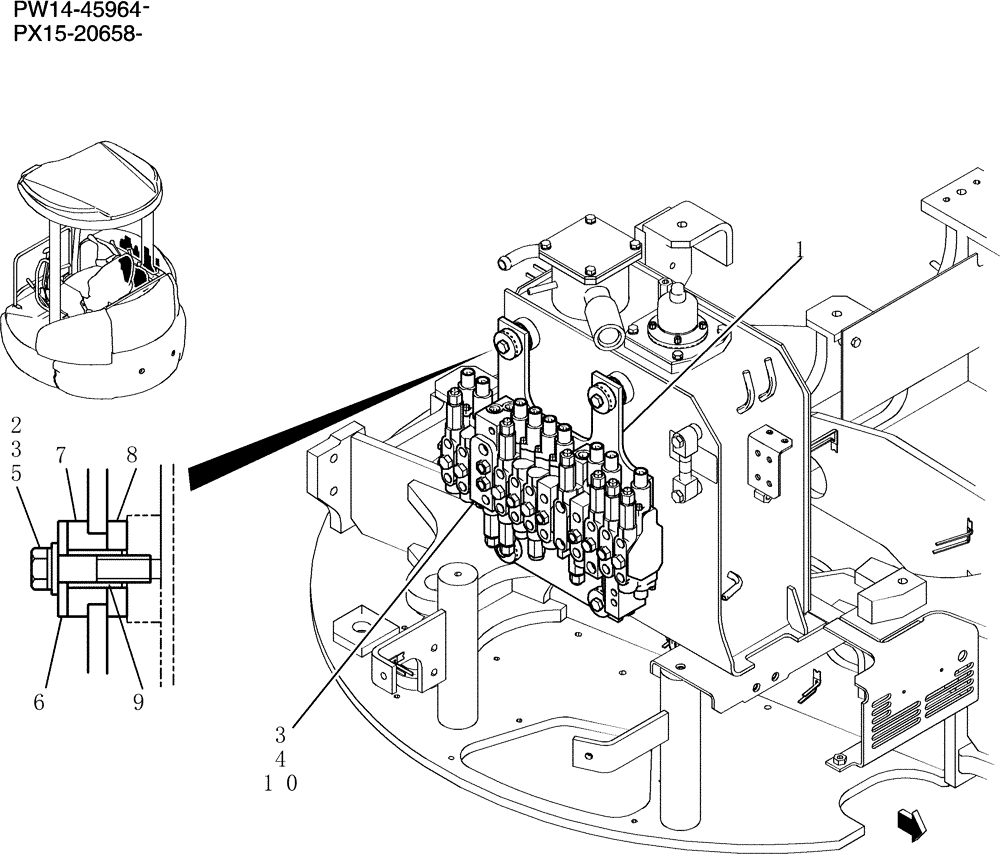

Запчасти Case CX36B (080-17[1]) - VALVE INSTAL (05) - SUPERSTRUCTURE

PW64H00079F1

Valve Instal

1шт.

1

PW64H01064P1

BRACKET

1шт.

2

ZS18C10050

SCREW,Hex, M10 x 50mm

Cap

4шт.

3

ZW16H10000

WASHER

7шт.

4

ZS18C10025

SCREW,Hex, M10 x 25mm

3шт.

5

ZW26X10000

LOCK WASHER

4шт.

6

2418T21137

WASHER

4шт.

7

PW64H01062P1

RUBBER

4шт.

8

2416Z649

CUSHION

4шт.

9

2418T17903D9

SPACER

4шт.

10

PX30V00041F3

CONTROL VALVE

Valve Assy, Control

1шт.

See(C.P.M)

1шт.
