Запчасти Case CX36B (065-01[2]) - CONTROL ASSEMBLY, ENGINE (WITH DECEL) (05) - SUPERSTRUCTURE

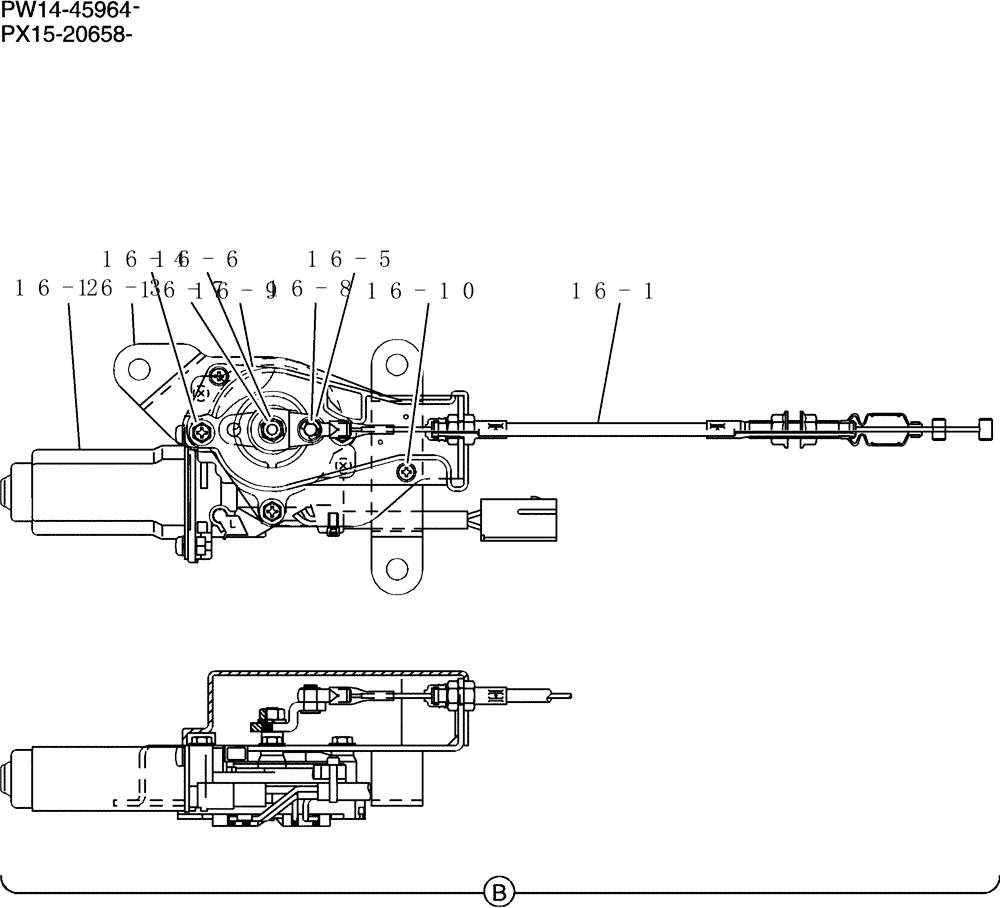

Схема запчастей Case CX36B - (065-01[2]) - CONTROL ASSEMBLY, ENGINE (WITH DECEL) (05) - SUPERSTRUCTURE
16-2
16-3
16-4
16-6
16-1
16-5
16-9
16-7
16-8
16-10

Артикул

Название

Примечание

Количество

PW11M00010F1

Control Assy, Engine (with Decel)

1шт.

1

PH51M00011F1

LEVER ASSY.

Assy, Throttle

1шт.

1-1

PH51M01030P1

BRACKET

1шт.

1-2

PH51M01032P1

LEVER

Lever

1шт.

1-3

R16T0137D2

WASHER

6шт.

1-4

ZW16H12000

WASHER

1шт.

1-5

PM51M01026P1

BUSHING,12mm ID x 14mm OD x 7mm L

2шт.

1-6

ZN18C08007

NUT

1шт.

1-7

2420T8007D3

CAPSCREW

Cap

1шт.

1-8

PM51M01025P1

PLATE

1шт.

1-9

ZN17C12007

NUT

2шт.

2

PW11M01100P1

CABLE

Control

1шт.

3

PW11M01153F1

LINK ASSY.

1шт.

3-1

PW11M01094P1

BRACKET

1шт.

3-2

PW11M01152F1

LINK ASSY.

1шт.

3-2a

PW11M01116P2

LINK

1шт.

3-2b

2405R312D1512

BUSHING,15mm ID x 17mm OD x 12mm L

1шт.

3-3

PW11M01112P1

NUT

1шт.

3-4

YR21C01161P1

WASHER,9mm ID x 22mm OD x 2.3mm Thk

1шт.

3-5

PW11M01107P1

SPRING

1шт.

4

2406Z321

HANDLE

Grip

1шт.

5

YT11M01012P1

GROMMET

1шт.

6

PW11M01071P1

PIN,8mm OD x 19mm L

1шт.

7

PW11M01109P2

PIN

1шт.

8

ZR36X00600

SNAP RING

Retaining

1шт.

9

ZS18C05010

SCREW,Hex, M5 x 10mm

Cap

1шт.

10

2419R9D2

COTTER PIN

Snap

1шт.

11

PM50S00005P1

SWITCH

Decel

1шт.

12

ZM22C10025

BOLT

Sems

1шт.

13

ZM22C08020

BOLT

Sems

6шт.

14

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

1шт.

15

PW11M01194D1

TUBE

1шт.

16

PW20S00012F1

GOVERNOR

Motor Assy

1шт.

18

ZC46X06007

CLIP

2шт.

19

ZM61C06016

BOLT

Sems

2шт.

20

PW11M01108P1

GROMMET

1шт.

16-1

PW20S00012S001

CABLE

1шт.

16-2

PM20S00009S002

GOVERNOR

Motor

1шт.

16-3

PW20S00012S003

BRACKET

1шт.

16-4

PM20S00009S004

SCREW

3шт.

16-5

PM20S00009S005

LEVER ASSY.

1шт.

16-6

PM20S00009S006

LOCK WASHER

1шт.

16-7

PM20S00009S007

NUT

1шт.

16-8

PM20S00009S008

RING

Retaining

1шт.

16-9

PM20S00009S009

COVER

1шт.

16-10

PM20S00009S010

SCREW

2шт.

Выбрано товаров: 46
