(025-01A[1]) - ENGINE INSTAL

Запчасти Case CX36B (025-01A[1]) - ENGINE INSTAL (05) - SUPERSTRUCTURE

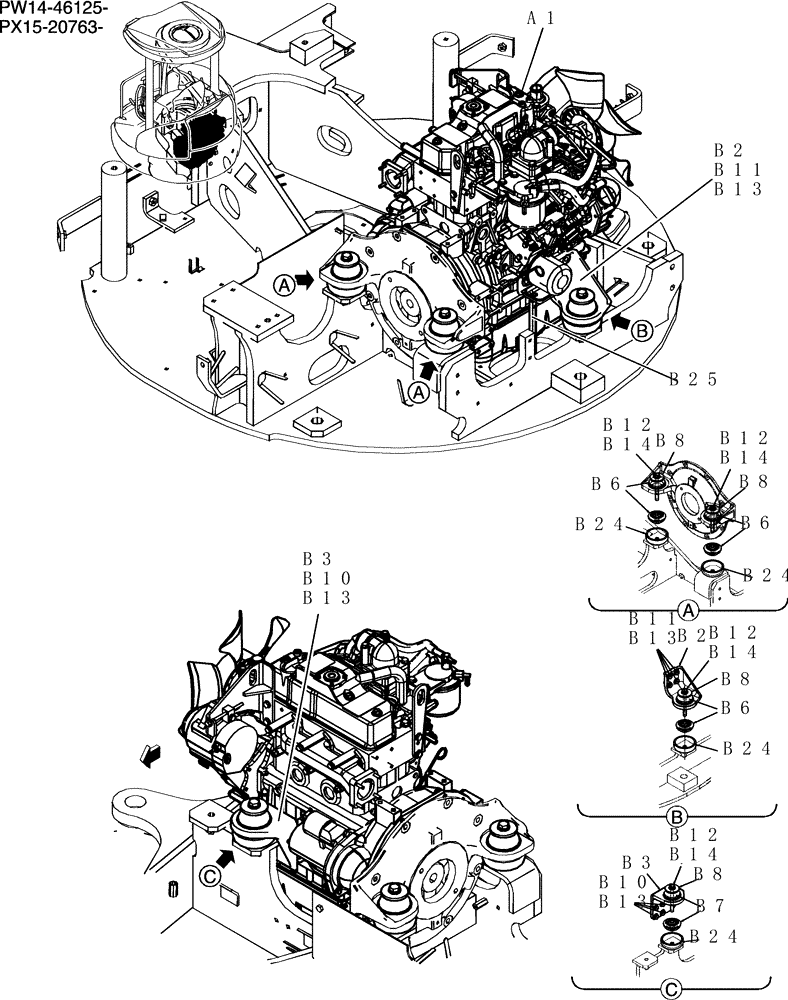

Схема запчастей Case CX36B - (025-01A[1]) - ENGINE INSTAL (05) - SUPERSTRUCTURE
b10
b13
b13
b14
b12
b3
b3
a1
b8
b13
b10
b6
b14
b12
b7
b12
b6
b8
b14
b24
b14
b24
b2
b8
b24
b25
b24
b13
b8
b12
b6
b2
b11
b11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PW02P00025F1

Engine Instal

1шт.

a1

PW02P00018F1

ENGINE

Assy (See Fig No.020-01-1)

1шт.

PW02P00026F1

Engine Instal

1шт.

b2

PW02P01055P1

BRACKET

1шт.

b3

PW02P01056P1

BRACKET

1шт.

b6

PW02P01054D1

RUBBER MOUNTING

6шт.

b7

PW02P01054D2

RUBBER MOUNTING

2шт.

b8

PW01P01022P1

WASHER

4шт.

b10

ZS18C10025

SCREW,Hex, M10 x 25mm

4шт.

b11

ZS18C10030

SCREW,Hex, M10 x 30mm

Cap

4шт.

b12

ZS18C12120

SCREW,Hex, M12 x 120mm

Cap

4шт.

b13

ZW16H10000

WASHER

8шт.

b14

ZW16H12000

WASHER

4шт.

b24

PW02P01041P1

COVER

4шт.

b25

PW02P01047D1

HOSE,12mm ID x 250mm L

1шт.
