(025-01[1]) - ENGINE INSTAL

Запчасти Case CX36B (025-01[1]) - ENGINE INSTAL (05) - SUPERSTRUCTURE

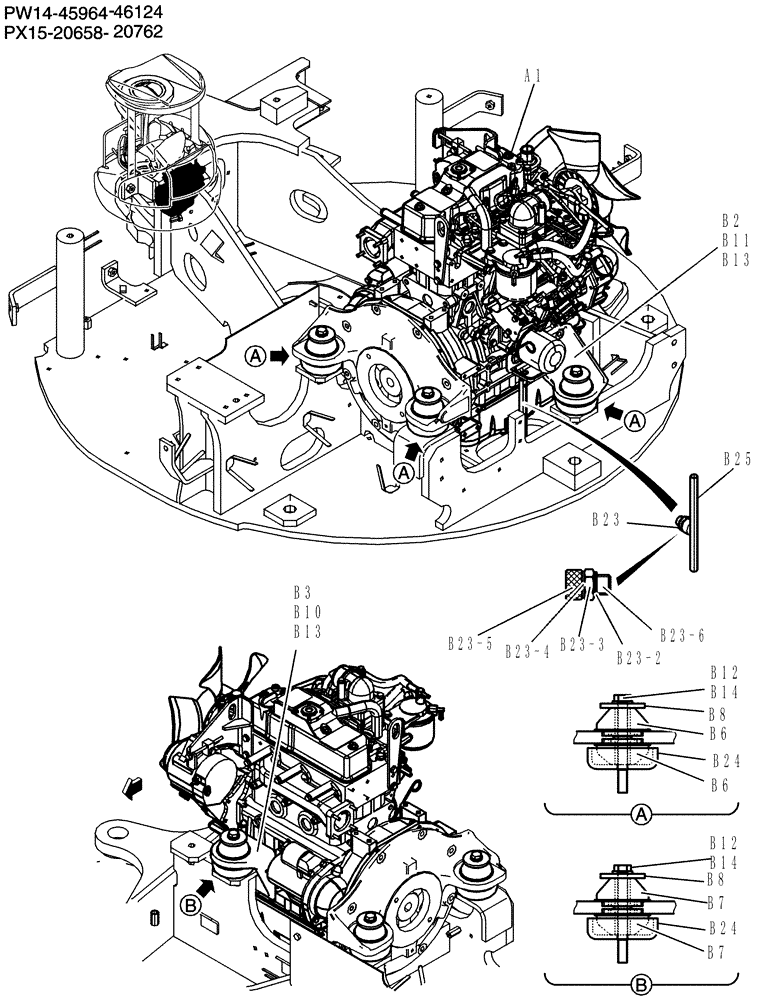

Схема запчастей Case CX36B - (025-01[1]) - ENGINE INSTAL (05) - SUPERSTRUCTURE
b23-5
b8
b24
b6
b2
b13
b12
b6
b7
b10
b23
a1
b11
b12
b25
b14
b13
b3
b23-6
b14
b23-3
b23-2
b24
b23-4
b8
b7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PW02P00019F1

Engine Instal

1шт.

a1

PW02P00018F1

ENGINE

Assy (See Fig No.020-01-1)

1шт.

PW02P00020F1

Engine Instal

1шт.

b2

PW02P01055P1

BRACKET

1шт.

b3

PW02P01056P1

BRACKET

1шт.

b6

PW02P01054D1

RUBBER MOUNTING

6шт.

b7

PW02P01054D2

RUBBER MOUNTING

2шт.

b8

PW01P01022P1

WASHER

4шт.

b10

ZS18C10025

SCREW,Hex, M10 x 25mm

4шт.

b11

ZS18C10030

SCREW,Hex, M10 x 30mm

Cap

4шт.

b12

ZS18C12120

SCREW,Hex, M12 x 120mm

Cap

4шт.

b13

ZW16H10000

WASHER

8шт.

b14

ZW16H12000

WASHER

4шт.

b23

PW02P01057F1

PLUG,M22 x 1.5

Assy

1шт.

b23-2

LQ02PU1002S002

WASHER

1шт.

b23-3

LQ02PU1002S003

BODY

1шт.

b23-4

LQ02PU1002S004

O-RING

1шт.

b23-5

LQ02PU1002S005

CAP

Cap

1шт.

b23-6

LQ02PU1002S006

PLUG

1шт.

b24

PW02P01041P1

COVER

4шт.

b25

PU01P01035P1

HOSE

Hose Assy with Straight Coupler

1шт.

b25

PM91Z01005P1

HOSE

Hose Assy with Elbow Coupler

1шт.

b25

PW02P01047D1

HOSE,12mm ID x 250mm L

1шт.
